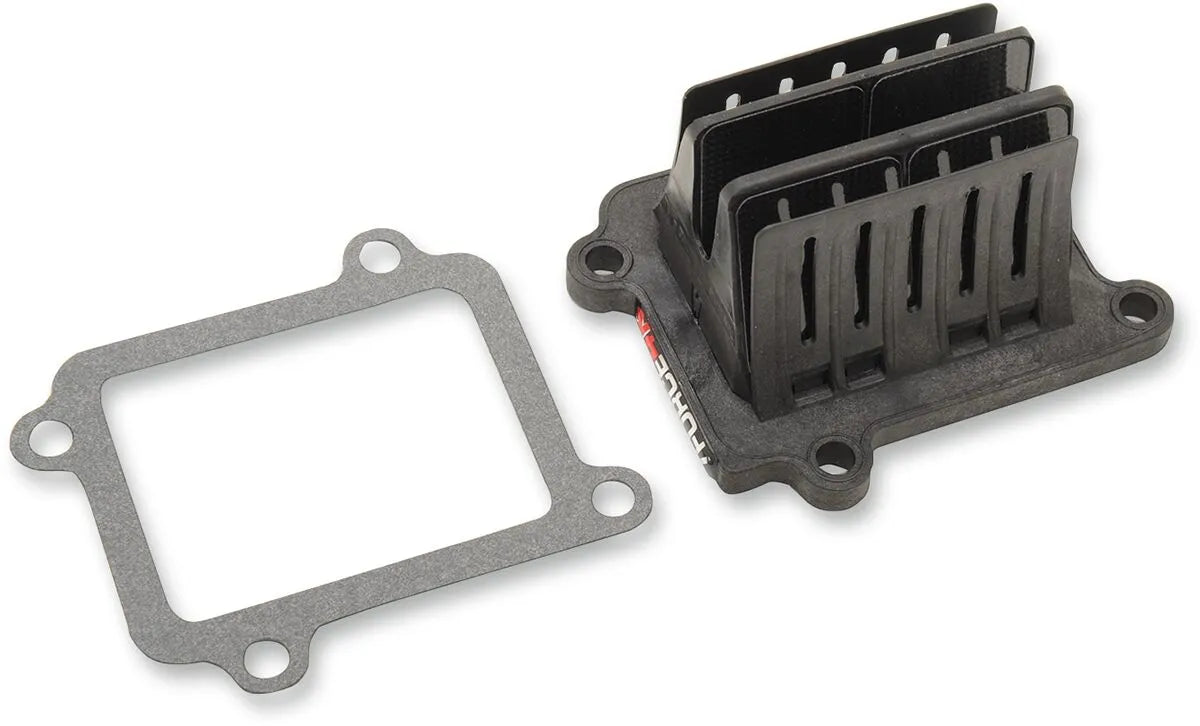

Moto Tassinari V-Force 4 Reed Valve Set - Black - V4R04

The Vforce/Moto Tassinari V-Force 4 Reed Valve Set is engineered to maximize airflow and enhance engine performance for your motorcycle. This reed valve set is a result of meticulous design and advanced materials, ensuring improved throttle response and increased horsepower.

Description

The V-Force 4 Reed Valve Set features a host of innovative design elements to optimize airflow and enhance engine performance. The reed cage has been widened to maximize airflow, while the airfoil shape at the cage tip increases air velocity from the outer ports. A redesigned manifold, reed cage, and air guide contribute to the overall enhanced performance of the VForce4R system. The combined reed tip area has been increased by 10.5%, further boosting total airflow. The long reed stops are designed to progressively slow petal tip velocity, improving petal durability. Additionally, the central wing's frontal area has been reduced by 15.6% and combined with a more aerodynamic shape. Pre-curved reed petals ensure a better seal at the tip, and the rubber overmolding on the reed tip surface of the cage further enhances petal life. Made with a new reed petal resin system, carbon fiber, and lay-up, this reed valve set guarantees superior durability and performance. Installation is straightforward, offering a direct performance upgrade. Order one set per reed cage when replacing reeds.

Features & highlights

• Increased Airflow: Maximizes engine performance with a wider reed cage and increased reed tip area.
• Enhanced Petal Durability: Long reed stops progressively slow petal tip velocity.
• Aerodynamic Design: Reduced frontal area and optimized shape for improved airflow.
• Improved Seal: Pre-curved reed petals ensure a better seal at the tip.
• Durable Construction: Made with a new reed petal resin system, carbon fiber, and lay-up.
• Enhanced Petal Life: Rubber overmolding on reed tip surface of cage.
• Made in the USA: Ensures high-quality manufacturing and materials.

Technical specifications

• Brand: VFORCE/MOTO TASSINARI
• Product Name: Reed Valve
• Material: Carbon Fiber, Rubber
• Color/Finish: Black
• Base Color: Black
• Type: Snap Together
• Units: Set

Important to know

When ordering replacement reeds, order one set per reed cage.
