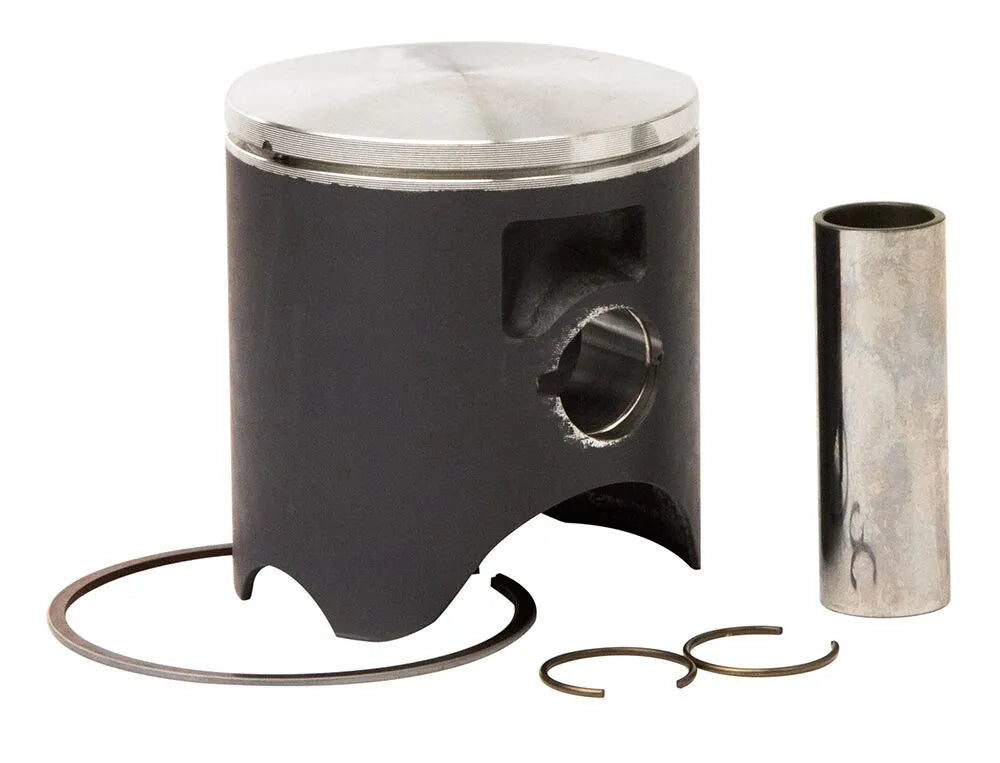

Vertex Cast Replica Piston Kit - 48.50mm Bore - 85cc - Size D - 22803D

Upgrade your 2-stroke engine with the Vertex Cast Replica Piston Kit. This kit provides an OEM-quality replacement piston, designed for optimal performance and longevity. Experience improved engine efficiency and reliability with this high-quality piston kit.

Description

The Vertex Cast Replica Piston Kit offers a reliable and cost-effective solution for rebuilding your 85cc 2-stroke engine. These cast pistons are manufactured to original equipment (OE) specifications, ensuring a precise fit and optimal performance. Each piston undergoes a T-5 heat treatment, hardening and tempering cycle to enhance its strength and durability. The piston skirt features a Molybdenum Disulphide coating, which promotes faster break-in times and extends piston life by reducing friction. The pistons are made from a gravity-cast aluminum alloy with an 18% silicone content, resulting in a lightweight yet robust construction. This kit is designed as a direct OEM replacement, ensuring compatibility and ease of installation.

Features & highlights

• Cast piston manufactured to original OE form for precise fit and performance.
• T-5 heat treatment provides enhanced strength and durability.
• Molybdenum Disulphide coated skirt reduces friction for faster break-in and extended life.
• Gravity-cast aluminum alloy with 18% silicone offers a lightweight and strong piston.
• Designed as a direct OEM replacement for easy installation.
• Ideal for rebuilding 85cc 2-stroke engines.

Technical specifications

• Brand: Vertex
• Product Name: Piston Kit
• MPN: 09102310
• Engine Type: 2-Stroke
• Displacement: 85 cc
• Bore Size: 48.50 mm
• Piston Diameter: 48.47 mm
• Piston Size: Standard Size D
• Compression Ratio: Standard
• Piston Material: Cast Aluminum Alloy
• Skirt Coating: Moly Coated
• Ring Material: Nitride Coated Steel
• Units: Kit

Important to know

Two-stroke piston rings are included. This kit contains the piston, rings, wrist pin, and circlips necessary for installation. Always consult your engine's service manual for proper installation procedures and torque specifications.
