S&S Cycle Twin Cam 510C Camshaft Kit - 106-4380

Upgrade your Harley-Davidson's performance with the S&S Cycle 510C Camshaft Kit. This bolt-in camshaft kit is designed to boost your engine's power and torque, providing a significant improvement in the 3000-5500 RPM range. Made in the USA, this kit offers reliability and performance you can trust.

Description

The S&S Cycle 510C Camshaft Kit is engineered to deliver a noticeable performance enhancement for 88", 95", 96", and 103" cubic inch engines. Designed as a bolt-in solution, it eliminates the need for extensive modifications, making installation straightforward. It works optimally with engines having compression ratios below 9.7:1, using stock pushrods and valve springs. Experience a substantial increase in power and improved throttle response, especially within the 3000-5500 RPM range. This camshaft kit is ideal for riders looking for a reliable and effective upgrade to their motorcycle's performance. The S&S Cycle 510C camshaft provides improved torque and horsepower where you need it most, giving you the edge on the road.

Features & highlights

• Bolt-in camshaft for easy installation in 88", 95", 96", and 103" CID engines.
• Optimized for engines with compression ratios below 9.7:1.
• Provides a significant power increase in the 3000-5500 RPM range.
• Compatible with stock pushrods and valve springs, simplifying installation.

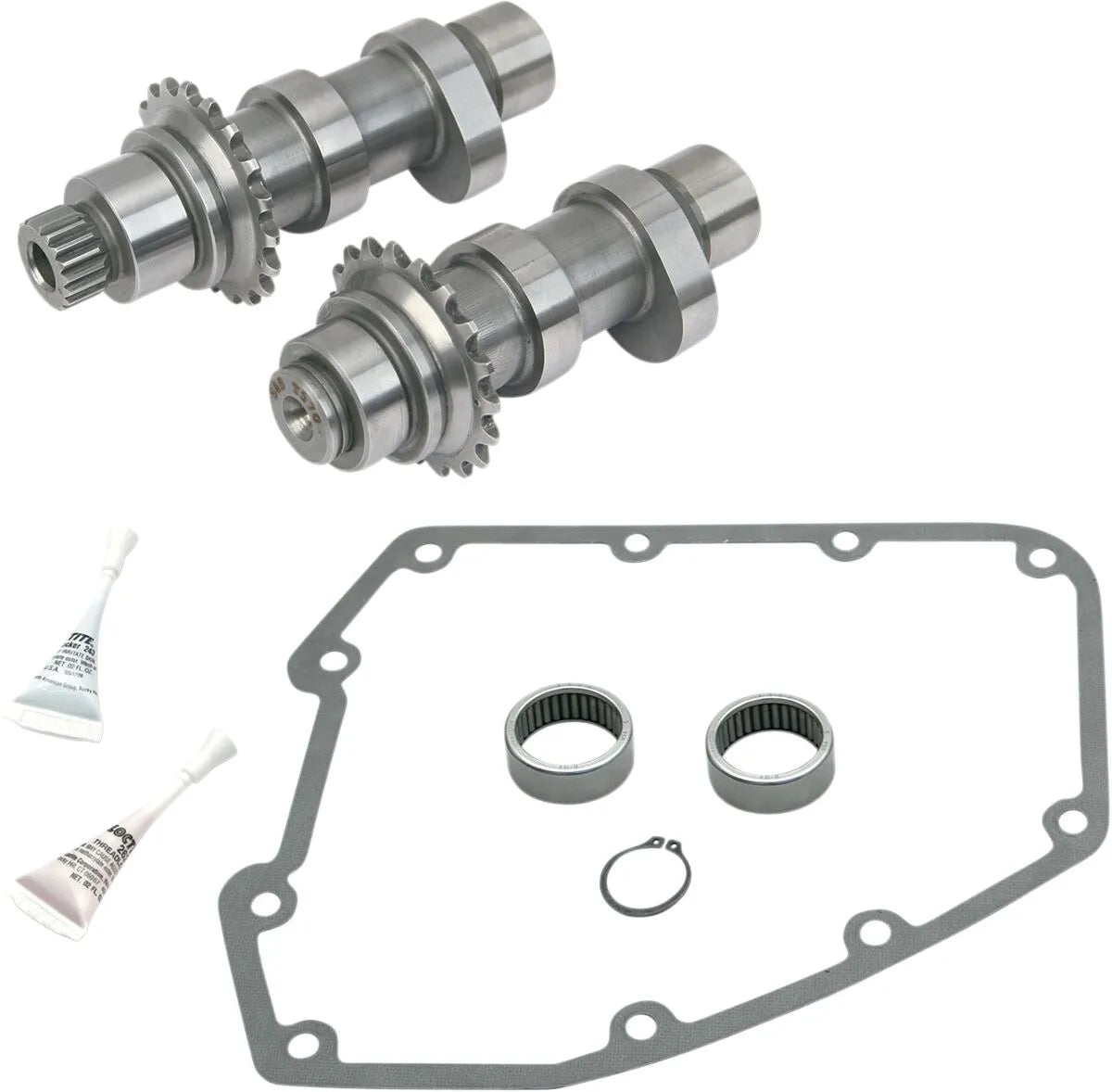

• Includes all necessary components for installation: cams, gasket, bearings, etc.
• Made in the USA, ensuring high-quality and reliability.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Grind: 510 Series
• Type: Chain
• Intake Open: 20°
• Intake Close: 38°
• Intake Duration: 238°
• Intake Lift: 0.510"
• Intake Lift at TDC: 0.187"
• Intake Lobe Centerline: 99°
• Exhaust Open: 52°
• Exhaust Close: 20°
• Exhaust Duration: 252°
• Exhaust Lift: 0.510"
• Exhaust Lift at TDC: 0.178"
• Exhaust Lobe Centerline: 106°

Important to know

This kit is designed for engines with compression ratios below 9.7:1. Ensure compatibility with your engine's specifications before installation.
