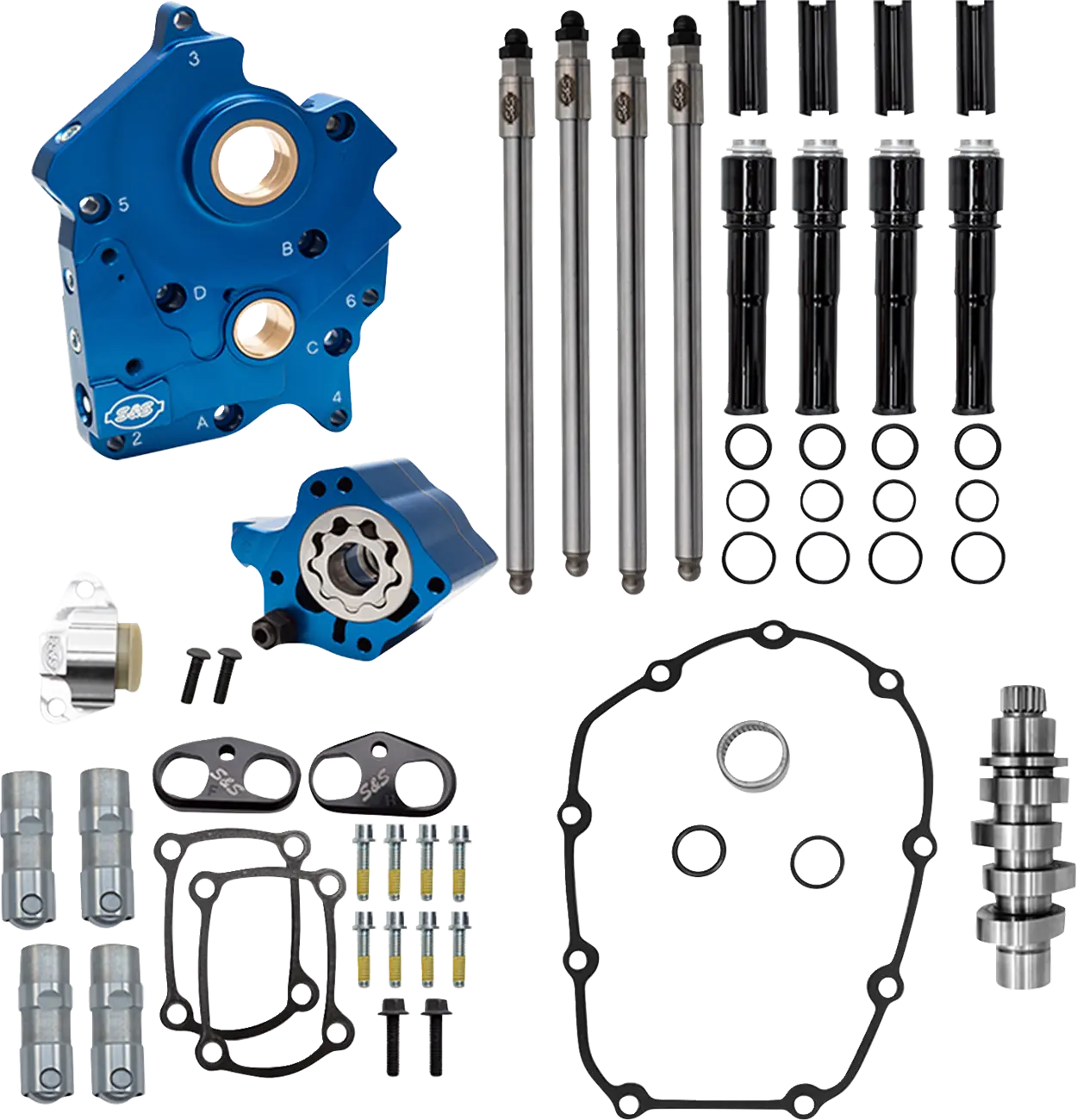

S&S Cycle 496 Series Chain Drive Cam Chest Kit

Upgrade your motorcycle's performance with the S&S Cycle 496 Series Chain Drive Cam Chest Kit. Engineered for superior power and reliability, this comprehensive kit delivers enhanced oiling, reduced valvetrain noise, and improved stability for oil-cooled engines.

Description

The S&S Cycle 496 Series Cam Chest Kit is meticulously designed to optimize your engine's valvetrain and oiling system. At its core, the oil pump and cam plate are precision machined from high-quality billet aluminum, ensuring exceptional durability and consistent performance. This kit features independent scavenge sections for both the flywheel cavity and cam chest, significantly increasing oil flow capacity on both the feed and scavenge sides. Debris screens in both scavenge pickups, along with a strategically placed magnet in the cam chest, prevent contaminants from reaching the oil pump, extending engine life. The adjustable pressure relief valve allows for fine-tuning even after installation. Included are S&S Cycle's renowned Quickee pushrods, known for their easy installation. The tappets provide fast pump-up and superior high-RPM performance, minimizing valvetrain noise from startup to shutdown due to their close tolerances and low leak rates. Complementing this, the hard-anodized black tappet cuffs improve tappet stability in high-lift and high-RPM situations, making this 496 Series grind kit ideal for oil-cooled applications seeking a significant performance boost with 0.485" intake and exhaust lift.

Features & Highlights

• Precision Billet Aluminum Construction: The oil pump and cam plate are precision machined from billet aluminum for unmatched durability and consistent oil pressure, ensuring long-term reliability.
• Optimized Oil Scavenging System: Independent scavenge sections for the flywheel cavity and cam chest, coupled with increased oil flow capacity, ensure efficient oil delivery and return, crucial for high-performance motorcycle cam kit setups.
• Advanced Debris Management: Integrated debris screens in scavenge pickups and a cam chest magnet actively prevent contaminants from entering the oil pump, safeguarding critical engine components.
• Adjustable Performance Tuning: Features an adjustable pressure relief valve, allowing for precise oil pressure adjustments even after the unit is installed in your engine, a key benefit for the oil-cooled engine upgrade.
• Superior Valvetrain Components: Includes S&S Cycle Quickee pushrods, high-performance tappets for fast pump-up and reduced noise, and hard-anodized tappet cuffs for enhanced stability in demanding conditions.

Technical Specifications

• Type: Chain Drive
• Grind: 496 Series
• Application: Oil Cooled
• Intake Lift: 0.485"
• Exhaust Lift: 0.485"
• Intake Duration: 227°
• Exhaust Duration: 243°
• Intake Lift at TDC: 0.072"
• Exhaust Lift at TDC: 0.097"
• Intake Open: 7°
• Exhaust Open: 48°
• Intake Close: 40°
• Exhaust Close: 15°
• Features: Black Pushrod Tubes
• Vendor Part Number: 310-1379

Important to Know

This kit includes a groove for an optional OEM oil seal; the oil seal itself is not included and must be purchased separately.
