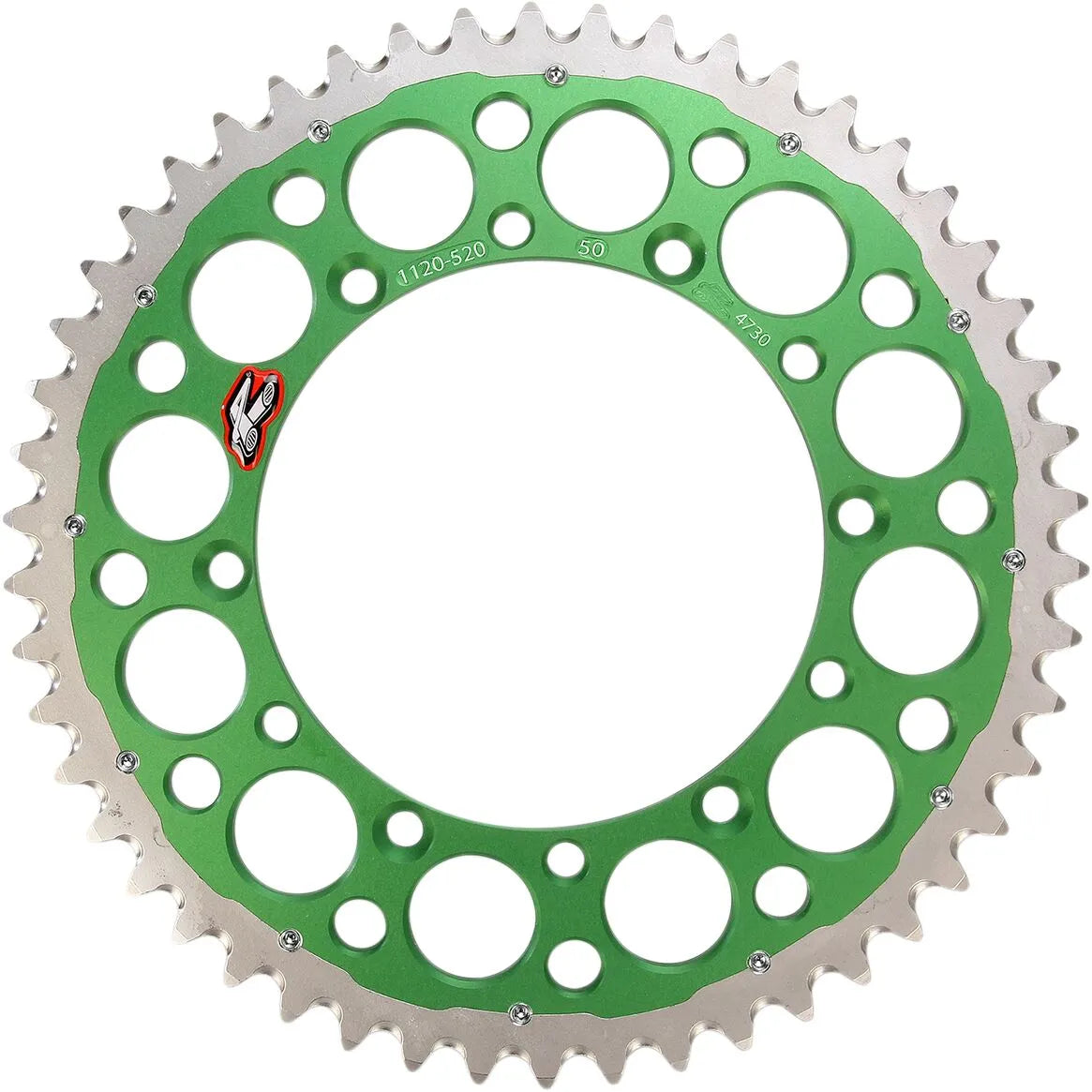

Renthal Twinring Rear Sprocket - 50T - 520 - Green - 1120-520-50GPGN

The Renthal Twinring™ rear sprocket offers unmatched durability and performance for your motorcycle. Combining the best of both worlds, it utilizes a lightweight aluminum core with a robust steel outer ring. This design provides exceptional longevity without sacrificing weight.

Description

The Renthal Twinring™ rear sprocket is engineered for extreme durability and performance. The inner ring is machined from Renthal's high-strength Ultralight™ 7075 T-6 aluminum, ensuring minimal weight. The outer ring is constructed from electro-less nickel-coated steel, providing ultimate wear resistance. Designed with minimal material, the outer ring keeps weight down while maximizing strength. The outer ring is expanded at 200°C before being fitted over the inner ring. This interference fit, combined with a unique wave pattern, creates a permanent and incredibly strong bond that lasts the life of the sprocket. Flat socket head screws further enhance the chainwheel's strength, especially during side impacts, and prevent contact with the chain guide. Self-cleaning mud grooves between each tooth prevent dirt buildup, reduce chainwheel wear, and minimize weight. The Renthal Twinring™ sprocket lasts up to three times longer than a standard aluminum sprocket, while remaining significantly lighter than a comparable all-steel sprocket. Upgrade to the Renthal Twinring for the ultimate combination of lightweight performance and exceptional durability.

Features & highlights

• Inner ring made from high-strength Ultralight™ 7075 T-6 aluminum for reduced weight.
• Electro-less nickel-coated steel outer ring for maximum durability and wear resistance.
• Interference fit and wave pattern ensures a permanent bond between the inner and outer rings.
• Flat socket head screws add extra strength and prevent chain guide interference.
• Self-cleaning mud grooves prevent dirt buildup and reduce wear.
• Lasts up to 3 times longer than standard aluminum sprockets.
• Lighter than all-steel rear sprockets, improving performance.

Technical specifications

• Brand: Renthal
• Product Name: Sprocket
• Mounting Position: Rear
• Chain Size: 520
• Tooth Count: 50
• Material: 7075-T6 Aluminum, Nickel-coated Steel
• Type: Drive
• Color/Finish: Green

Important to know

No additional hardware is included with this product.
