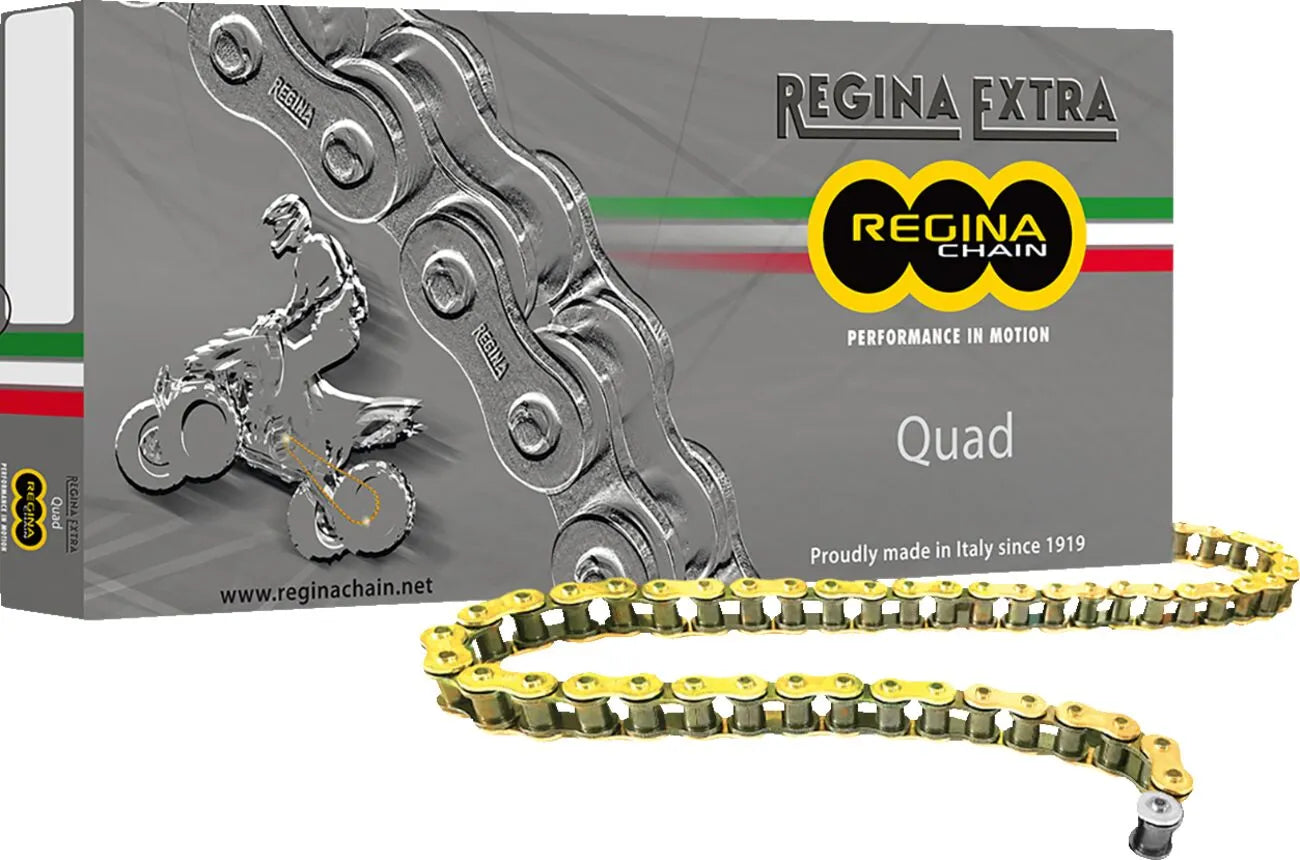

Regina 520 QUAD Z-Ring Chain - 118 Links - Gold - 135QUAD/00E
Produktinfo
- Artikelnummer
- 12240078
- Tillverkarnummer
- 135QUAD/00E
- Placering
- Kedjestorlek
- 520
- Antal länkar
- 118
- Tätningstyp
- Z-Ring
- Brottstyrka
- 36 kN
- Max. motor (offroad)
- 500 cc
The Regina 520 Quad Drive Chain is engineered to deliver unparalleled performance and durability for your ATV. Developed to withstand the rigorous demands of off-road riding, this chain offers a superior combination of strength, reduced friction, and extended wear life, making it the ideal choice for ATV enthusiasts.
Description
The Regina 520 Quad Drive Chain is the ultimate solution for ATV riders seeking maximum performance and reliability. Featuring patented Z44 sealing rings, this chain significantly improves performance and extends wear life, surpassing traditional X-ring and Z-ring chains. The advanced design reduces friction by 50% compared to standard O-rings, ensuring smooth and efficient power transfer. Constant lubrication from a special high-temperature grease in the critical pin/bushing area ensures long-lasting performance. Constructed with high-carbon alloy pins to minimize wear, increased roller thickness, and thicker outer plates with quad-riveting for greater tensile strength, this 520 quad chain can handle up to 500cc ATV applications. Every part is shot-peened for maximum fatigue resistance, and the chain is pre-loaded for superior initial performance and minimal adjustment. This gold Regina 520 Quad Chain is made in Italy ensuring top quality.
Features & highlights
- Patented Z44 sealing rings for improved performance and extended wear life.
- 50% reduction in friction compared to traditional O-rings, enhancing power delivery.
- High-carbon alloy pins and increased roller thickness for exceptional durability.
- Thicker outer plates and quad-riveting for greater tensile strength and reliability.
- Shot-peened components for maximum fatigue resistance.
- Pre-loaded chain for superior performance and minimal initial adjustment.
- Ideal for ATVs up to 500cc.

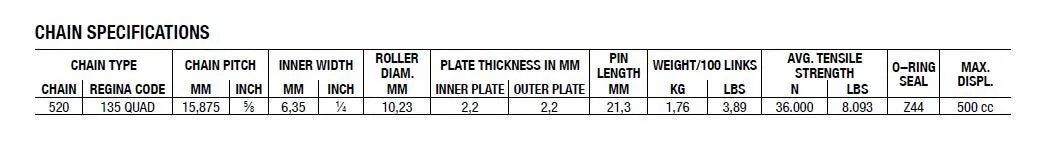

Technical specifications
- Brand: Regina
- Chain Size: 520
- Chain Type: 520 QUAD
- Color/Finish: Gold, Steel
- Master Link Connector Type: Clip
- Material: Steel
- Maximum Engine Displacement (Offroad): 500 cc
- Number of Links: 118
- Seal Type: Z-Ring
- Tensile Strength: 36 kN (8091 lb)
- Weight: 1.76 kg/100 Links
Important to know
Press fit clip link is included.
- Brand
- REGINA
- Vendor part number
- 135QUAD/00E
- Color finish
- Gold, Steel
- Product name
- Drive Chain
- Weight
- 1,76 kg/100 Links
- Tensile strength
- 36 kN (8091 lb)
- Seal type
- Z-Ring
- Number of links
- 118
- Material
- Steel
- Master link connector type
- Clip
- Chain type
- 520 QUAD
- Chain size
- 520
- Type
- Chain
- Units
- Each
