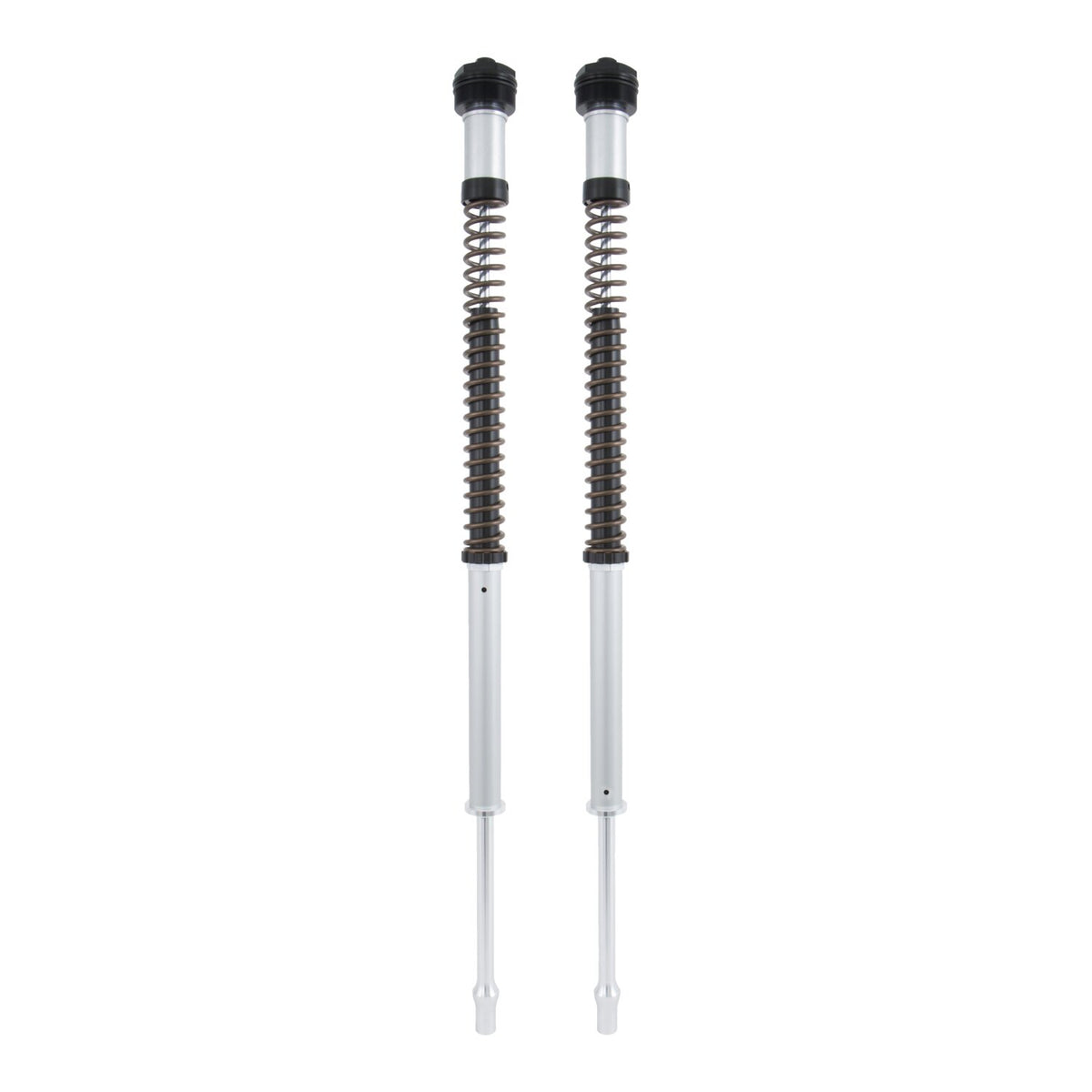

Öhlins NIX22 Front Fork Cartridge Kit - FKS 221

- Piston diameter: 22mm - Position: front - Spring series: 08423-xx - No lowering kit available - Recommend fork oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx. SAE 7.5W) - Oil level mm: 140 mm - Packaging unit: pair - ABE approved. Note: Includes 9.5 N/mm, 10 N/mm and 11 N/mm springs. Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed. Description: The Öhlins NIX 22 cartridge kit comes with 22mm pistons, which makes it compatible with motorcycles that are equipped with conventional (non-upside down) front forks. The proven 'NIX' design is derived from the technology that helped provide championships on the highest level and each NIX 22 cartridge kit is made to fit the specific bike series to meet the requirements and characteristics of that bike. It features compression damping in the left leg and rebound damping in the right leg, allowing more precision, stability and feedback for improved rider confidence. All adjustments, including spring preload, are made at the top cap. It is a bolt-in installation into the original front fork, but springs must be ordered separately the match the rider's weight and preferences for the perfect set-up. Note: Optional available spring sets. Springs are sold in pairs. Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed. 962747 08423-80 Spring rate 8.0 N/mm (custom light) 962748 08423-85 Spring rate 8.5 N/mm (custom light) 962749 08423-90 Spring rate 9.0N/mm (approx. 50 kg rider / preload turns: 4) 962750 08423-95 Spring rate 9.5N/mm (approx. 60-70 kg rider / preload turns: 60kg 3, 70kg 5) 962738 08423-10 Spring rate 10N/mm (approx. 80-110 kg rider / preload turns: 80kg 3, 90kg 5, 100kg 7, 110kg 8)

• Category: Fork springs
• Manufacturer part number: FKS 221
