Motion Pro Timing Kit Adapter - 14mm - Silver - 08-0249

The Motion Pro Adapter for Air-Cooled Engines allows you to use a water-cooled 2-stroke timing kit on air-cooled engines with 14 mm spark plugs. This adapter provides versatility when working with different engine types.

Description

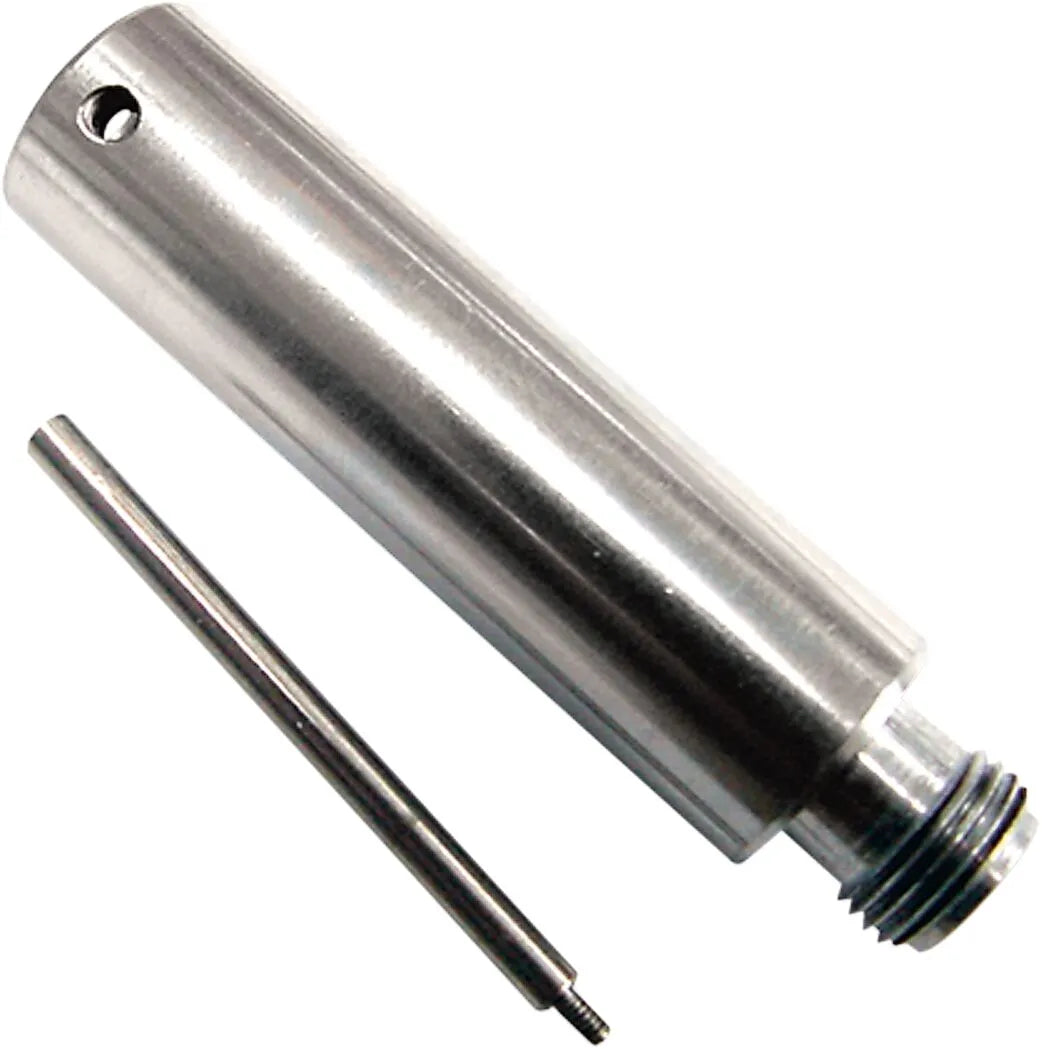

This adapter kit bridges the compatibility gap between water-cooled 2-stroke timing kits and air-cooled engines that utilize 14 mm spark plugs. It includes an extended thread adapter and a dial indicator extension, providing the necessary components for precise timing adjustments. The adapter is designed to facilitate the use of a water-cooled timing kit on engines that would not normally be compatible. Note that using a two-stroke timing kit on Yamaha RD two-stroke twins is only possible when the engine is out of the frame.

Features & highlights

• Enables the use of water-cooled 2-stroke timing kits on air-cooled engines.
• Compatible with engines using 14 mm spark plugs.
• Includes an extended thread adapter for secure fitment.
• Features a dial indicator extension for accurate timing adjustments.
• Provides versatility for engine timing across different engine types.

Technical specifications

• Brand: Motion Pro
• Product Name: Adapter
• Type: Indicator Dial
• Application: Ignition System
• For Engine Type: 2-Stroke
• Measurement System: Metric
• Outside Diameter: 19 mm (3/4")
• Overall Length: 55 mm (2-3/16")
• Color/Finish: Silver

Important to know

Please note: The adapter kit does NOT allow a two-stroke timing kit to be installed on Yamaha RD two-stroke twins when the engine is in the frame. This is only possible when the engine is out of the frame.
