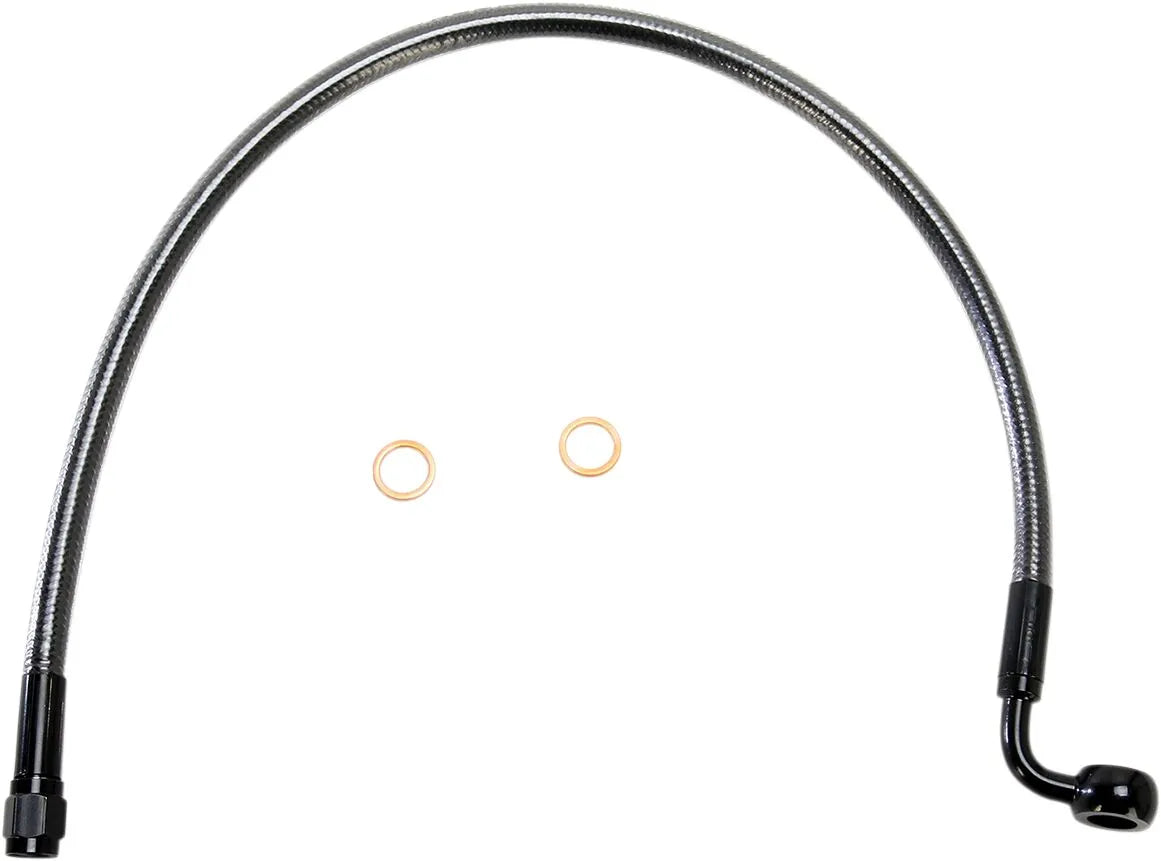

Magnum Shielding Designer Abs Front Brake Line Kit - 19"

Upgrade your motorcycle's braking performance with the Magnum Shielding Designer Series ABS-Specific Front Brake Line Kit. These brake lines are engineered for enhanced construction and are fully compatible with Harley-Davidson ABS requirements, ensuring optimal braking power and safety.

Description

This front brake line kit is designed to follow the same routing path as OEM lines, providing a seamless and professional installation. The kit features a direct-fit lower assembly that works in conjunction with alternative length upper lines, giving you flexibility for handlebar modifications and custom setups. The braid color and weave perfectly match all Magnum Shielding control cables and brake lines, ensuring a cohesive and stylish look. The crystal-clear outer jacket offers exceptional protection against scuffing, paint damage, and discoloration. Constructed with PTFE inner tubing, DuPont™ Kevlar® aramid fiber, premium Signature Magnum braids, and a PVC outer jacket, these brake lines greatly reduce line expansion, providing consistent and reliable braking performance. Assembled in the USA.

Features & highlights

• Designed specifically for Harley-Davidson ABS requirements, ensuring optimal braking performance and safety.
• Crystal-clear outer jacket provides exceptional protection against scuffing, paint damage, and discoloration, maintaining a pristine appearance.
• Constructed with PTFE inner tubing, DuPont™ Kevlar® aramid fiber, and premium Signature Magnum braids to minimize line expansion and provide consistent braking.
• Braid color and weave match all MAGNUM control cables and brake lines for a coordinated, custom look.
• Direct-fit lower assembly works with alternative length upper lines, offering flexibility for handlebar modifications and custom setups.
• Assembled in the USA, ensuring high-quality craftsmanship and reliability.
• Available in various lengths to accommodate different motorcycle models and handlebar configurations.

Technical specifications

• Brand: MAGNUM SHIELDING
• Product Name: Brake Line
• Type: Alternate Length
• Material: Stainless Steel
• Color/Finish: Black, Black Pearl
• Length: 19" (48.5 cm)
• Mounting Position: Front, Upper
• For Braking System: with ABS
• Upper Banjo Fitting: 10 mm 90° Banjo Fitting

Important to know

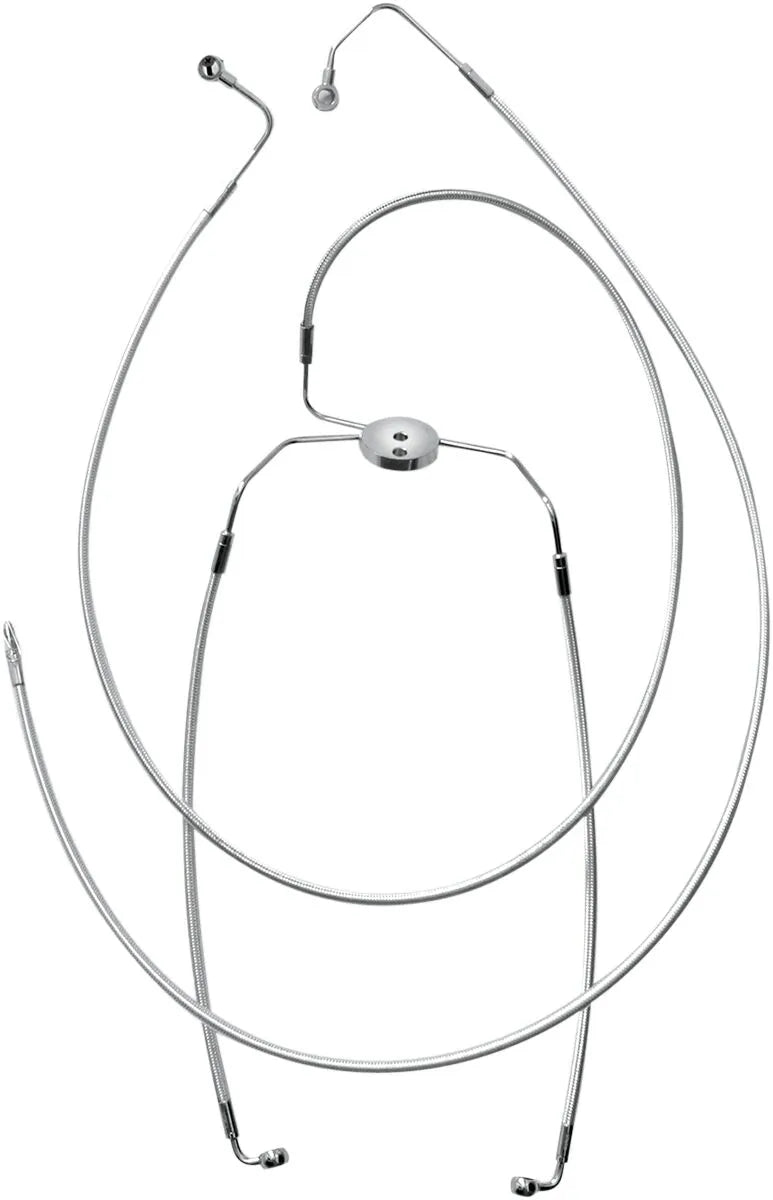

Upper, lower, mid brake line, and adapter kits are sold separately for a perfect fit. Harley-Davidson motorcycles equipped with ABS (anti-lock brake system) require ABS-specific upper and lower brake line kits. Failure to do so may result in compromised anti-lock braking ability. Magnum Shielding upper brake line kits manufactured specifically for these applications are identified with the letters “ABS” printed directly on the brake hose. Non-stock applications require taking a measurement for upper brake line length and banjo angle to ensure correct fitment. Single disc Dyna and Sportster models use two kits – one upper and one lower. Softail models utilize 3 kits (except '18+ dual disc), with the lower being optional on all. Upper kits are required for handlebar changes; by using either an upper brake line adapter or for '11 - '17 Softail models, the optional ABS Lower Brake Line Kit which includes the adapter. Adapter for Softail models allows the upper brake line to complete the connection from the ABS controller ('11 - '17) or lower brake line ('18+) to the master cylinder. If replacing the stock lower brake line assembly on '18+ dual disc Softails, an adapter is NOT needed. Using AN-3 fittings, the upper line connects directly to the Magnum lower assembly Dual disc Touring models use three kits - one upper, one lower and one mid-line. Trike models use two kits - one upper and one mid-line. No lower is available. A Designer mid-line and upper line is required for all Touring and Trike models with ABS. The mid-line connects to the upper brake line in the fairing or nacelle and completes the routing from the master cylinder to the ABS controller. Lower kit is optional.
