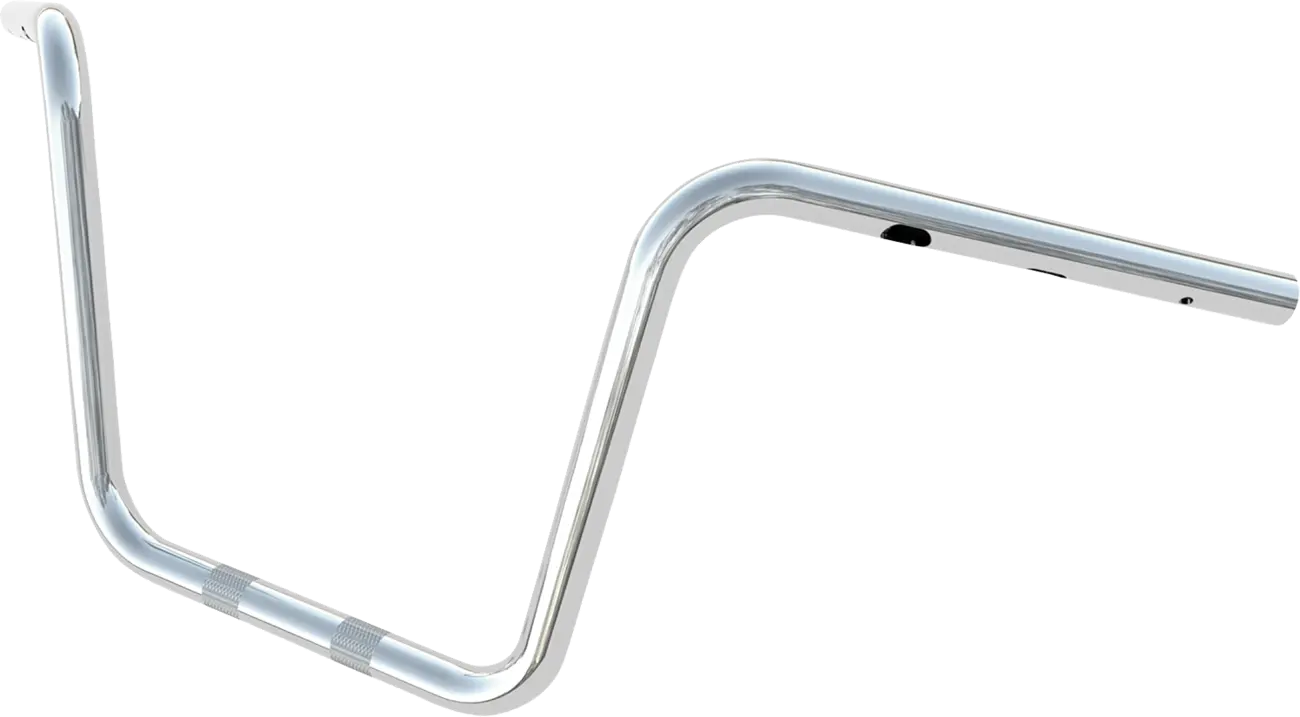

Magnum Shielding 1-1/4" Caliber Handlebar

Upgrade your motorcycle with the Magnum Shielding 1-1/4" Caliber Handlebar, designed for superior comfort and performance. This handlebar combines quality craftsmanship with rider-centric features to enhance your overall riding experience.

Description

The Magnum Shielding Caliber Handlebar is expertly constructed with high-quality materials and precise CNC mandrel bends, ensuring an accurate fit and comfortable wrist angles. The 1-1/4" diameter handlebar features a 1" clamping area and 3-1/2" on-center knurling for secure mounting. Machined control mounts (not swaged) and laser-cut, burr-free holes and slots accommodate internal wiring and electronic throttle control, simplifying installation. Each handlebar is pre-loaded with E-Z pull-thru sleeving, further streamlining the wiring process. Finished in chrome, this ape hanger handlebar provides both style and functionality.

Features & highlights

• Constructed from high-quality steel for durability and reliability.
• Features machined control mounts and laser-cut holes for easy internal wiring.
• Pre-loaded with E-Z pull-thru sleeving to simplify wiring installations.
• CNC mandrel bent for an accurate fit and comfortable wrist angles.
• Compatible with standard controls, including hydraulic clutches.
• Designed with comfortable wrist angles for enhanced riding comfort.
• Chrome finish provides a sleek, custom look.

Technical specifications

• Brand: Magnum Shielding
• Product Name: Handlebar
• Type/Bend: Ape Hanger
• Color/Finish: Chrome
• Material: Steel
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Center Width: 8" (20.5 cm)
• Width: 34-1/2" (87.5 cm)
• Rise: 14" (35.5 cm)
• End Rise: 13" (33 cm)
• Pullback/Sweep: 7" (18 cm)
• Features: Knurled Center, Accepts Heated Grips, For Hydraulic Clutch, Throttle-By-Wire Sensor in Control Housing

Important to know

This handlebar is assembled in the USA. It is not for use with stock risers and handlebar clamp/gauge mount clamp on 883C/1200C models.
