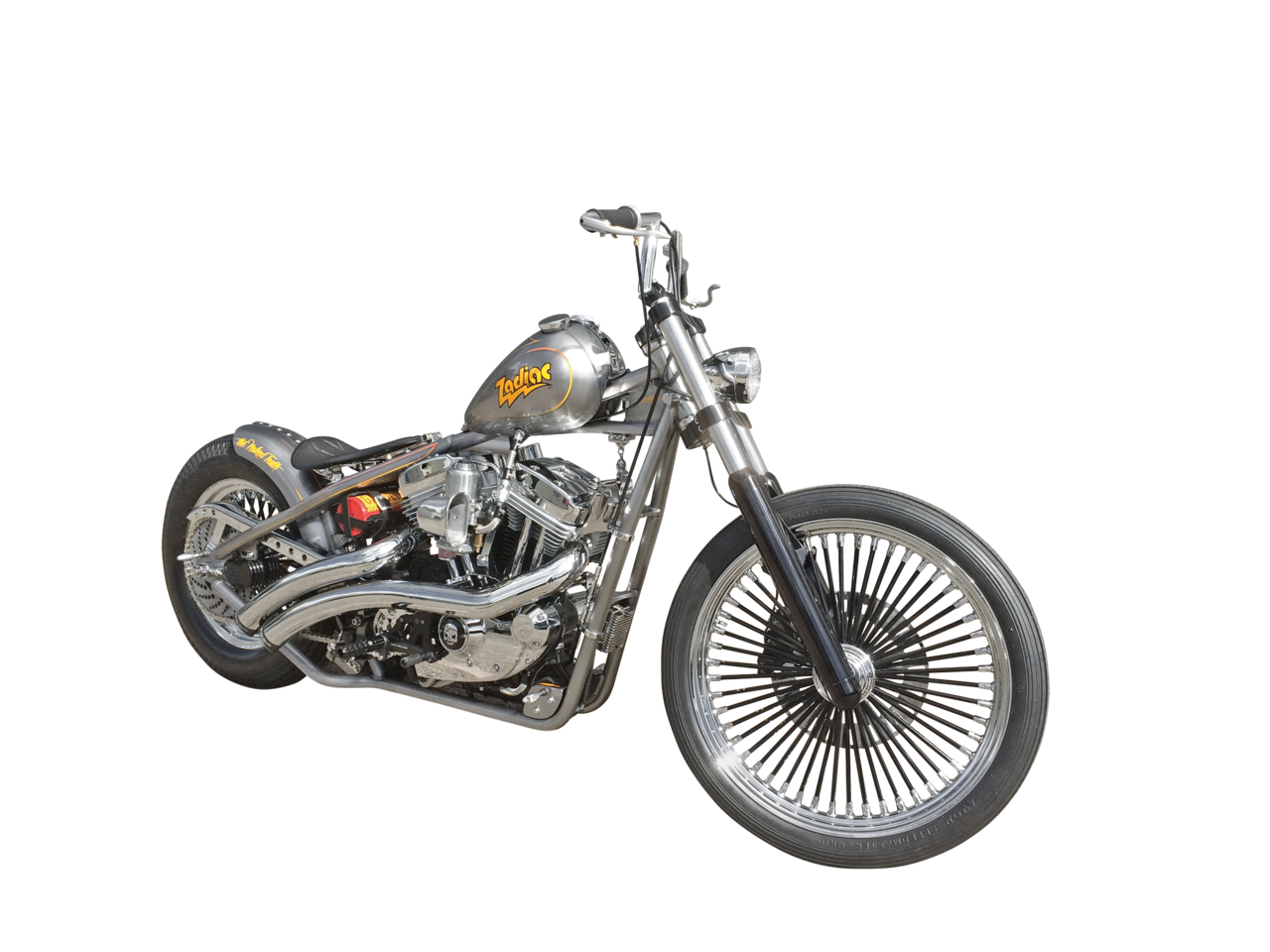

Kraft Tech Hardtail Frame for Evolution Sportster – Frame & Rear Suspension

These HardTail frames are developed for the Evolution Sportster engine 2004 to present. Like all Kraft/Tech frames, they are made from seamless thick-wall tubing. Features 1 1/4" tubing with a 1 1/2" diameter backbone. Available with 30 degrees rake for use with 130 wide rear tire in conjunction with a 1 1/8" belt, 30 degrees rake and 2" stretch in the down tubes for use with a 180 wide rear tire and 1 1/8" wide belt or 34 degrees rake and 2" or 3" stretch in the down tubes for use with a 180 wide rear tire and 1 1/8" wide belt. Wide frames will accept a 200 wide rear tire when final drive is converted to chain drive. All frames feature TIG/MIG welds, solid steel CNC machined neck and CNC machined billet steel axle carriers. Oil tank brackets, fender mounts and voltage regulator mount are welded in the correct place. Frames come complete with 3/4" rear wheel axle and are designed to use a 1/2" offset transmission sprocket for proper balance. Like most Kraft/Tech frames, the HardTail frames for Sportster engines are approved and can be used with up-to 150 HP engines.

Frames for 2004-2022 XL Sportster, For 180 or 200 series rear tire, 34 degrees rake, 2" stretched height

Rigid Rubbermnt frame XL04-up 34dgr 2str

• Category: Frames
• Approval: TÜV
