Koso Hd-03l Led Gauge Kit
Koso Hd-03l Led Gauge Kit
Hurry up, only 1 item left in stock.
About this product
About this product

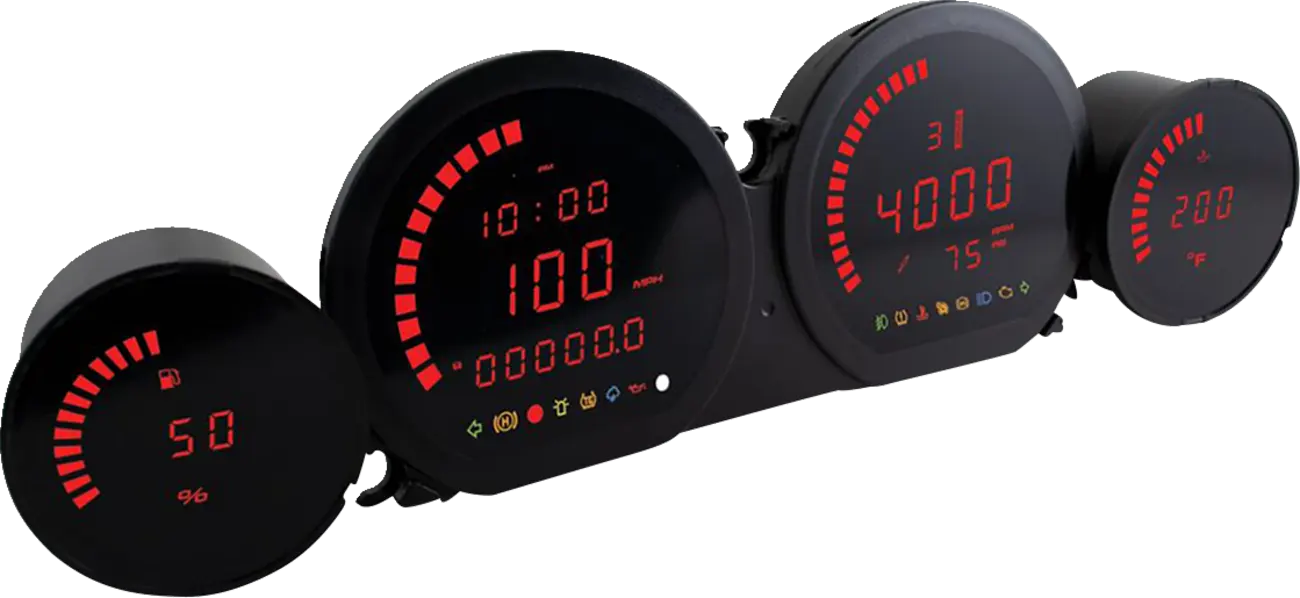

Upgrade your motorcycle's instrumentation with the Koso North America HD-03L Four-Piece LED Gauge Kit. This comprehensive kit provides a wealth of information at a glance, enhancing both the aesthetics and functionality of your bike. The Koso HD-03L is designed for easy installation and seamless integration with your existing system.
Description
The Koso HD-03L LED Gauge Kit replaces your OEM dash with a modern, bright, and highly functional display. Featuring a plug-and-play design, installation is straightforward using the existing OEM connectors. This multifunction kit includes a speedometer (0-199 MPH), tachometer (0-9,999 RPM), odometer (0-999,999 miles), volt meter (DC 8V - 18V), air suspension meter (if equipped), gear indicator, trip meter, engine temperature, oil temperature (32° F - 248° F), and fuel level gauges. The digit brightness is adjustable with five levels. Indicator lights cover essential functions like oil, engine warning, high beam, and turn signals. This gauge kit offers a significant upgrade in terms of both aesthetics and the amount of information available to the rider, improving safety and awareness on the road. Note: On CVO models, the run/stop switch must be in the ON position to change settings on the display.
Features & highlights
- Plug-and-play installation using OEM connectors for easy setup.
- Multifunction display includes speedometer, tachometer, odometer, voltmeter, and more.
- Adjustable digit brightness with five levels for optimal visibility.
- Comprehensive indicator lights for critical functions and warnings.
- Monitor engine and oil temperature to keep your engine running smoothly.
- Track fuel consumption and remaining mileage for better trip planning.
- Maximum speed and oil temperature record functions.
Technical specifications
- Brand: Koso North America
- Product Name: Gauge Kit
- Type: Multi-Function LED Gauge Kit
- Speedometer: 0 - 199 MPH
- Maximum Speed Record: 0 - 199 MPH
- Overspeed Warning: 19 - 199 MPH
- Tachometer: 0 - 9,999 RPM
- RPM Shift Light: 2,000 - 8,000 RPM
- Maximum RPM: 0 - 8,000 RPM
- Odometer: 0 - 999,999 miles
- Tripmeter A/B: 0 - 9,999 miles
- Mileage Maintenance: 300 - 10,000 miles
- Oil Temperature Meter: 32° F - 248° F
- Maximum Oil Temperature Record: 32° F - 248° F
- Effective Temperature Range: 14° F - 140° F
- Fuel Meter: 6 levels (1 level = 16.6%)
- Fuel Tank Volume: Off/1 - 9.9 US Gallons
- Remaining Mileage: 0 - 6,249 miles
- Volt Meter: DC 8V - 18V
- Effective Voltage: DC 12V
- Face Color: Black
- Housing Color: Black
- Readout Color: Red
- Depth: 2" / 1-3/4"
- Length: 2-3/4" / 10-5/8"
- Width: 3-3/4" / 2-3/4"
Important to know
Optional air pressure sensor for models equipped with air suspension is available separately.
