Hot Rods Connecting Rod Kit - 8691

Upgrade your engine's performance and reliability with the Hot Rods Connecting Rod Kit. This heavy-duty connecting rod assembly is designed as a direct OE replacement, offering superior strength and durability for demanding applications.

Description

The Hot Rods Connecting Rod Kit is engineered to withstand the rigors of high-performance engines. Crafted from certified 8620 AISI steel, these rods provide exceptional strength and resistance to deformation. The crankpins are manufactured from hot-rolled ASTM 4115 steel, case hardened to a hardness of 58-62Rc, ensuring long-lasting durability. The kit features the latest in caged needle roller bearing designs, promoting high RPM longevity. The uniquely designed big end incorporates strategically located side scalloping and vent slots to minimize bearing race distortion at high RPM. Small ends are double drilled to provide extra lubrication and cooling to the wrist pin bearing, especially critical in applications where the piston crown is close to the wrist pin bearing. Each rod is shot-peened to eliminate surface stress risers, and double honing produces an ultra-round bearing surface for maximum reliability. Compatible with both Hot Rods and OE crankshafts, this kit offers exceptional value and performance. Made in the USA.

Features & highlights

• Heavy-duty OE replacement connecting rod for increased engine reliability.
• Manufactured from certified 8620 AISI steel for superior strength and durability.
• Crankpins are made from hot-rolled ASTM 4115 steel and case hardened to 58-62Rc.
• Features caged needle roller bearings for enhanced high RPM performance.
• Big end design minimizes bearing race distortion at high RPM.
• Small ends are double drilled for increased wrist pin bearing lubrication and cooling.
• Shot-peened finish eliminates surface stress and enhances durability.

Technical specifications

• Brand: Hot Rods
• Product Name: Connecting Rod Kit
• Material: 8620 Steel
• Engine Type: 4-Cycle
• Displacement: 250 cc

Important to know

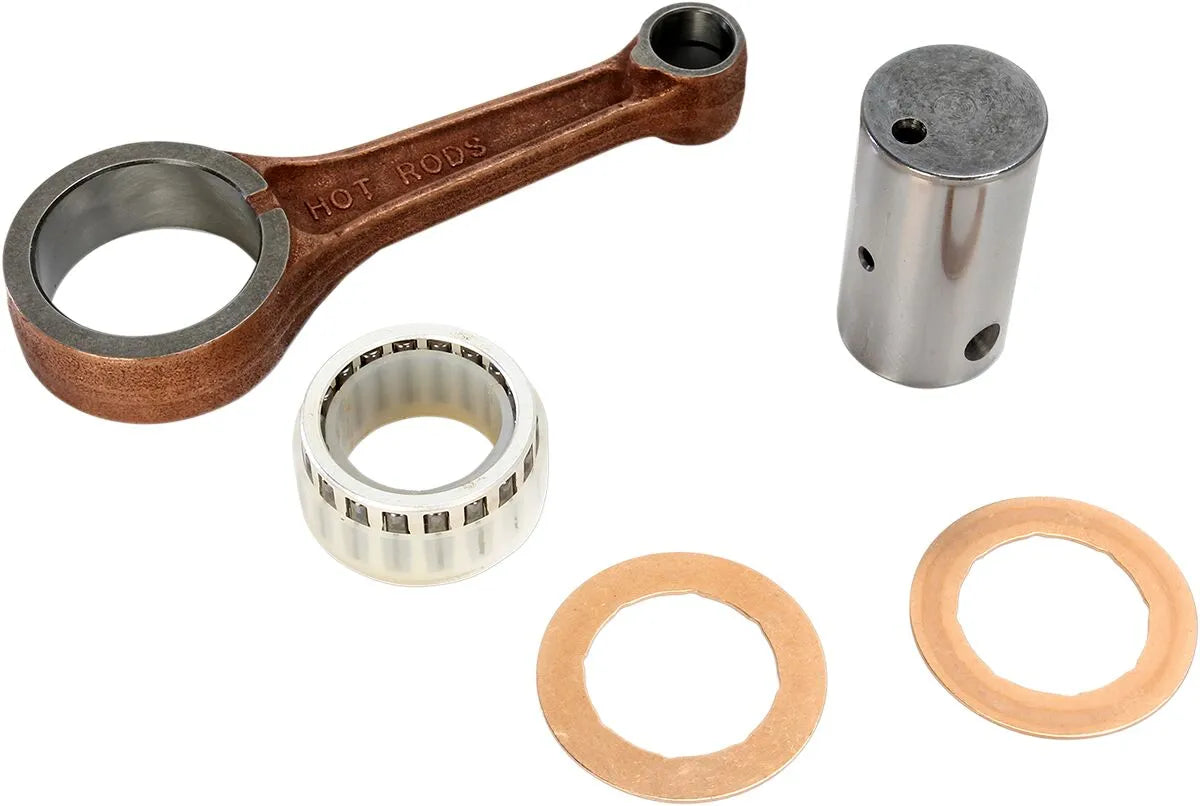

Rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
