Hot Rods Connecting Rod Kit For 125-220cc 2-cycle Engines

Upgrade your engine's performance and reliability with the Hot Rods Connecting Rod Kit. This kit provides a heavy-duty, OE-replacement connecting rod designed for demanding 2-cycle engines. Built with high-quality materials and advanced engineering, this connecting rod kit ensures optimal performance and longevity.

Description

The Hot Rods Connecting Rod Kit is engineered to exceed OEM standards, offering superior strength and durability for your 2-cycle engine. Constructed from certified 8620 AISI steel, this connecting rod provides exceptional resistance to stress and fatigue. The crankpin is manufactured from hot-rolled ASTM 4115 steel and case hardened to 58-62Rc, ensuring long-lasting performance. Featuring a modern caged needle roller bearing design, this connecting rod kit is built for high RPM applications. The uniquely designed big end incorporates strategically located side scalloping and vent slots to minimize bearing race distortion at high RPMs. The small ends are double-drilled, enhancing lubrication and cooling to the wrist pin bearing, which is essential when the piston crown is close to the wrist pin bearing. Each connecting rod is shot-peened to eliminate surface stress risers and double honed to produce an ultra-round bearing surface, maximizing reliability. Compatible with both Hot Rods and OE crankshafts, this kit is a must-have for any serious engine builder. Made in the USA.

Features & highlights

• Heavy-duty OE replacement connecting rod.
• Constructed from certified 8620 AISI steel for superior strength.
• Crankpin made from hot-rolled ASTM 4115 steel, case hardened to 58-62Rc.
• Caged needle roller bearing design for high RPM longevity.
• Big end design minimizes bearing race distortion at high RPM.
• Small ends are double drilled for improved wrist pin bearing lubrication.
• Shot-peened to eliminate stress risers and double honed for optimal bearing surface.

Technical specifications

• Brand: Hot Rods
• Part Number: 423108
• Displacement: 125 cc, 200 cc, 220 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Units: Kit

Important to know

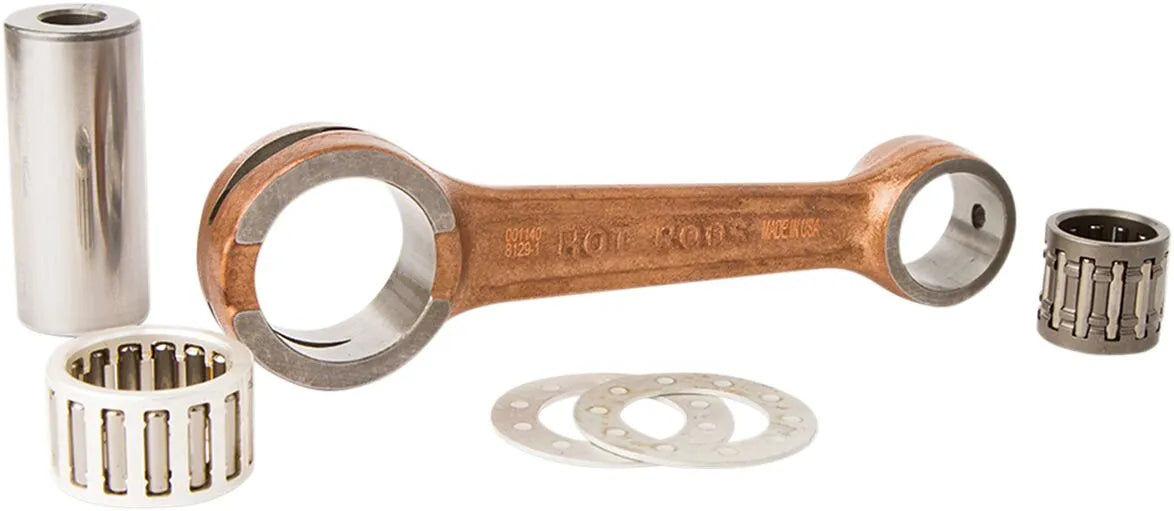

This connecting rod kit includes the rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
