Feuling Race Series Camchest Kit - Chain Drive Conversion
Feuling Race Series Camchest Kit - Chain Drive Conversion
Om denna produkt
Om denna produkt
Upgrade your Twin Cam engine with the Feuling Parts Race Series® Conversion Chain Drive Camchest Kit. This comprehensive kit replaces older mechanical components with a modern hydraulic tensioner system, enhancing engine performance and reliability. Experience cooler engine and oil temperatures, increased oil pressure, and reduced blow-by for a smoother, more efficient ride.
Description
The Feuling Race Series® Conversion Chain Drive Camchest Kit delivers significant improvements to your '99-'06 Twin Cam engine. By converting to a hydraulic tensioner system, this kit eliminates common issues such as wet sumping, blow-by, and oily air cleaners. Each component is engineered to work seamlessly together, resulting in 25°-35° cooler engine temperatures and 15°-30° cooler oil temperatures. You'll also notice a substantial increase in oil pressure, ranging from 15 lb to 30 lb. The included REAPER® Series conversion camshafts are designed for optimal performance. This kit provides everything needed for a complete chain drive conversion, ensuring a straightforward installation and long-lasting durability. The chain conversion allows the '99-'06 Twin Cam to utilize '07-'16 style components, offering improved performance and reliability.
Features & highlights
- Updates to a modern hydraulic tensioner system for enhanced reliability.
- Eliminates wet sumping, blow-by, and oily air cleaners.
- Lowers engine temperatures by 25°-35° and oil temperatures by 15°-30°.
- Increases oil pressure by 15 lb - 30 lb for superior lubrication.
- Includes REAPER® Series conversion camshafts for optimal performance.
- Comprehensive kit ensures all parts work in harmony for peak efficiency.
- Made in the USA with high-quality components for lasting durability.
Technical specifications
- Brand: FEULING PARTS
- Product Name: Camshaft Kit
- Type: Chain Conversion
- Grind: 574 Series
- Application: Intake, Exhaust
- Intake Duration: 240°
- Intake Open: 15°
- Intake Close: 45°
- Intake Lift: 0.574"
- Intake Lift at TDC: 0.163"
- Intake Lobe Centerline: 105°
- Exhaust Duration: 255°
- Exhaust Open: 61°
- Exhaust Close: 14°
- Exhaust Lift: 0.574"
- Exhaust Lift at TDC: 0.143"
- Exhaust Lobe Centerline: 113.5°
- Features: Pushrod Tube Covers, Short Travel Lifters, Quick Install Adjustable Pushrods
Important to know

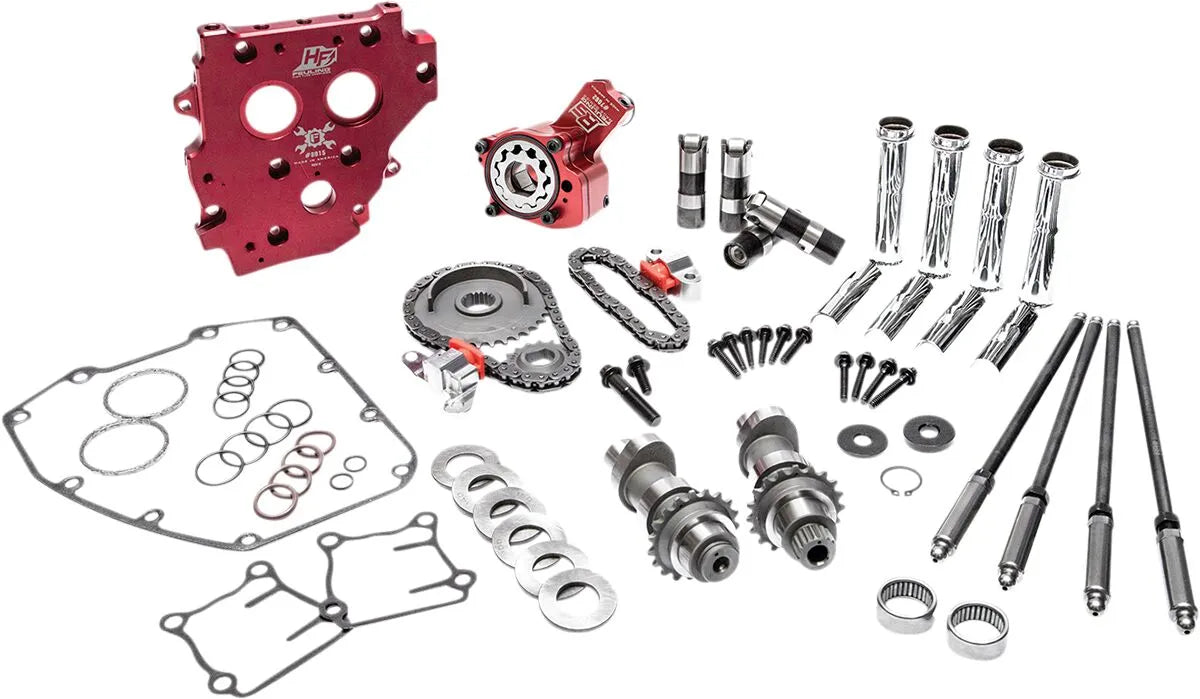

This kit does not fit '06 Dyna models. It is designed for '99-'06 Twin Cam engines, which utilize the '99-'06 inner cam journals, allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners, and chain drive system. This kit includes the sprockets, hydraulic tensioners, chains, and spacers needed for installation.
