Feuling M8 Race Series Oil System Pack - Red - 7097ST

Upgrade your Milwaukee-Eight engine's oiling system with the Feuling Parts Race Series® Oil System Pack. This comprehensive kit is designed to improve oil flow, increase pressure, and lower engine temperatures, resulting in enhanced performance and reliability. Experience smoother operation and eliminate common oiling issues with this complete, high-performance solution.

Description

The Feuling Parts Race Series® Oil System Pack delivers significant improvements to your M8 engine's oiling capabilities. The high-flow billet camplate, crafted from 7075 aluminum, is 50% harder and stronger than stock components. Enlarged oil pump reservoirs and optimized oil passages ensure increased oil flow to critical engine components, including lifters, piston cooling jets, and crankshaft/rod bearings. This system effectively eliminates wet sumping, blow-by, and oily air cleaners. Independent testing has shown a 2 horsepower and 2 ft./lb. torque gain at the rear wheel. With increased scavenge volume and optimized port sizing, this kit reduces engine sump oil levels by as much as 50%. Feuling oil pumps are bench-tested with a relief valve seated and sealed to a minimum of 30 psi, with full pop-off at 55-60 psi. This kit is specifically designed for M8 engines.

Features & highlights

• High-flow billet camplate increases oil flow and volume for improved engine cooling and lubrication.
• Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner running engine.
• Increases oil pressure and scavenge volume, leading to quieter and smoother engine operation.
• Reduces engine and oil temperatures by 15°-30° for increased reliability and performance.
• Includes Race Series® short-travel hydraulic lifters for higher RPM potential and reduced valve float.
• Machined groove on the back cover to accept the factory crank bearing seal.
• Made in the USA.

Technical specifications

• Brand: Feuling Parts
• Part Number: 09320293
• Material: Billet 7075 Aluminum
• Type: Oil System

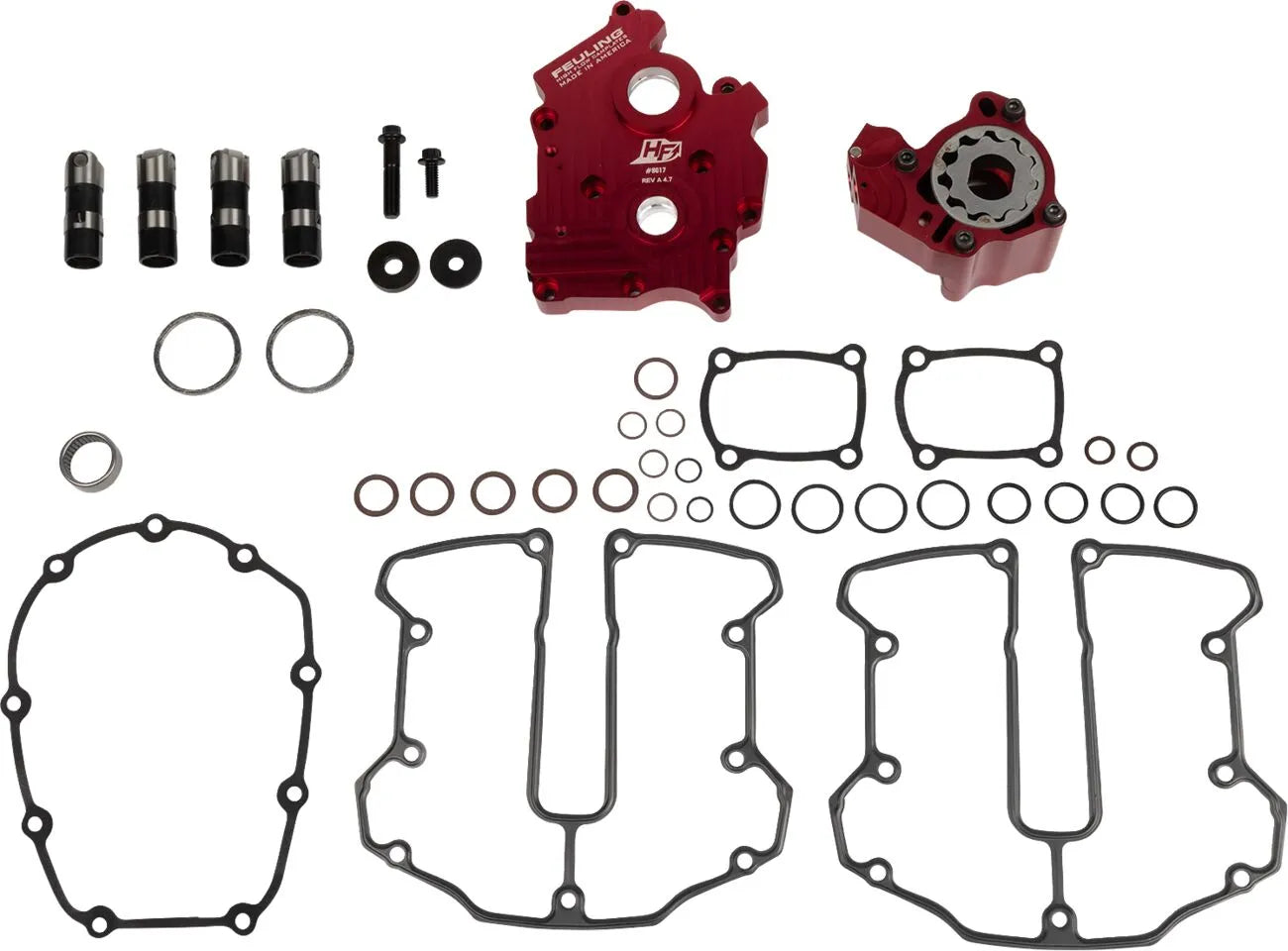

• Includes: Race Series® oil pump, Race Series® short-travel hydraulic roller lifters, High Flow camplate, cam installation kit, cam bearing, cam/​crank bolts and washers, engine and fastener assembly lube
• Oil Pump Relief Valve: 30 psi (minimum), 55-60 psi (full pop-off)

Important to know

M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit. An optional FUELING® X ARP bolt kit is available for the high flow camplate (PART #0932-0192) and HP+ or RS oil pump combo (PART #2401-0993). Optional ARP oil pump bolts do not use washers.
