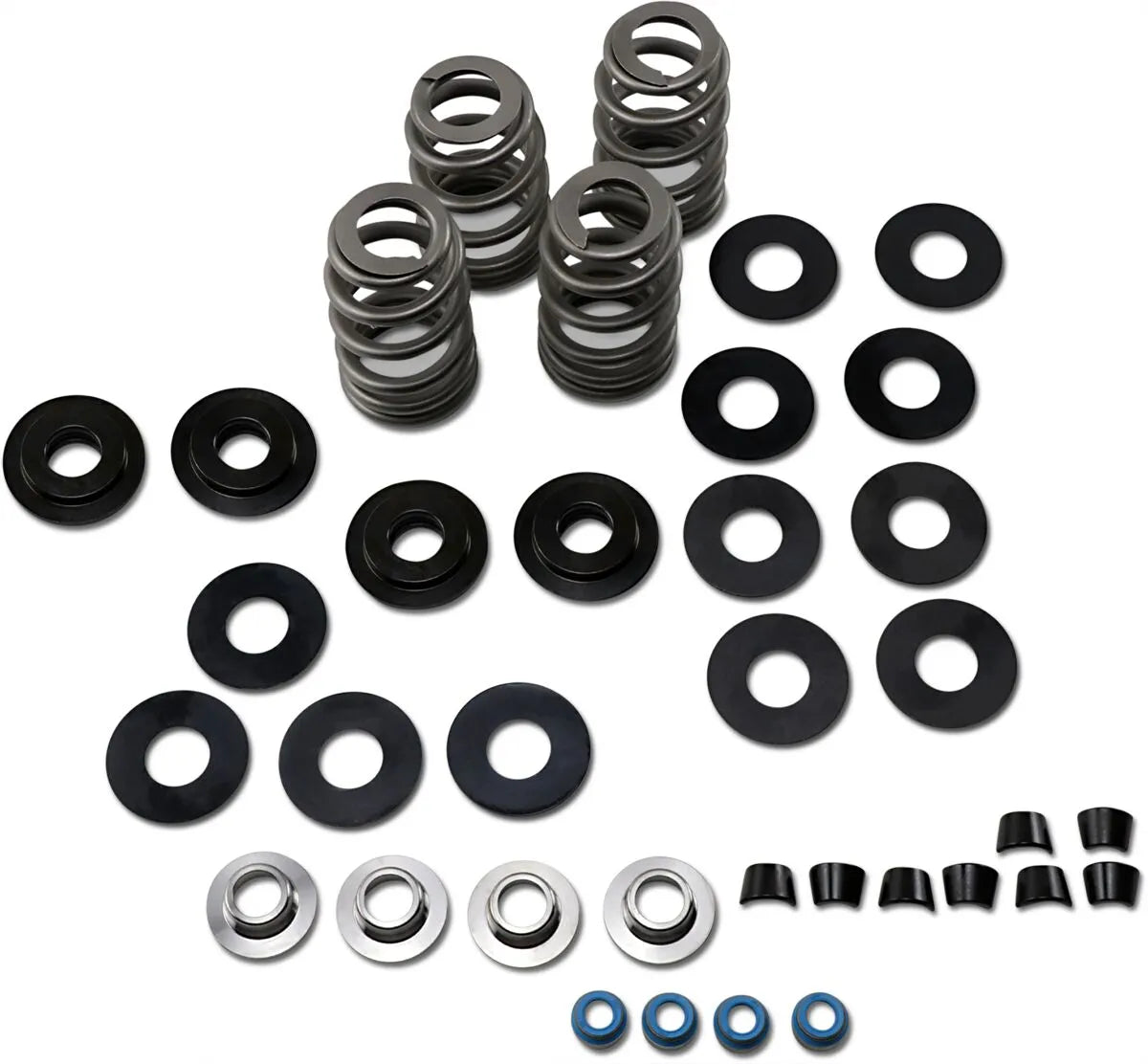

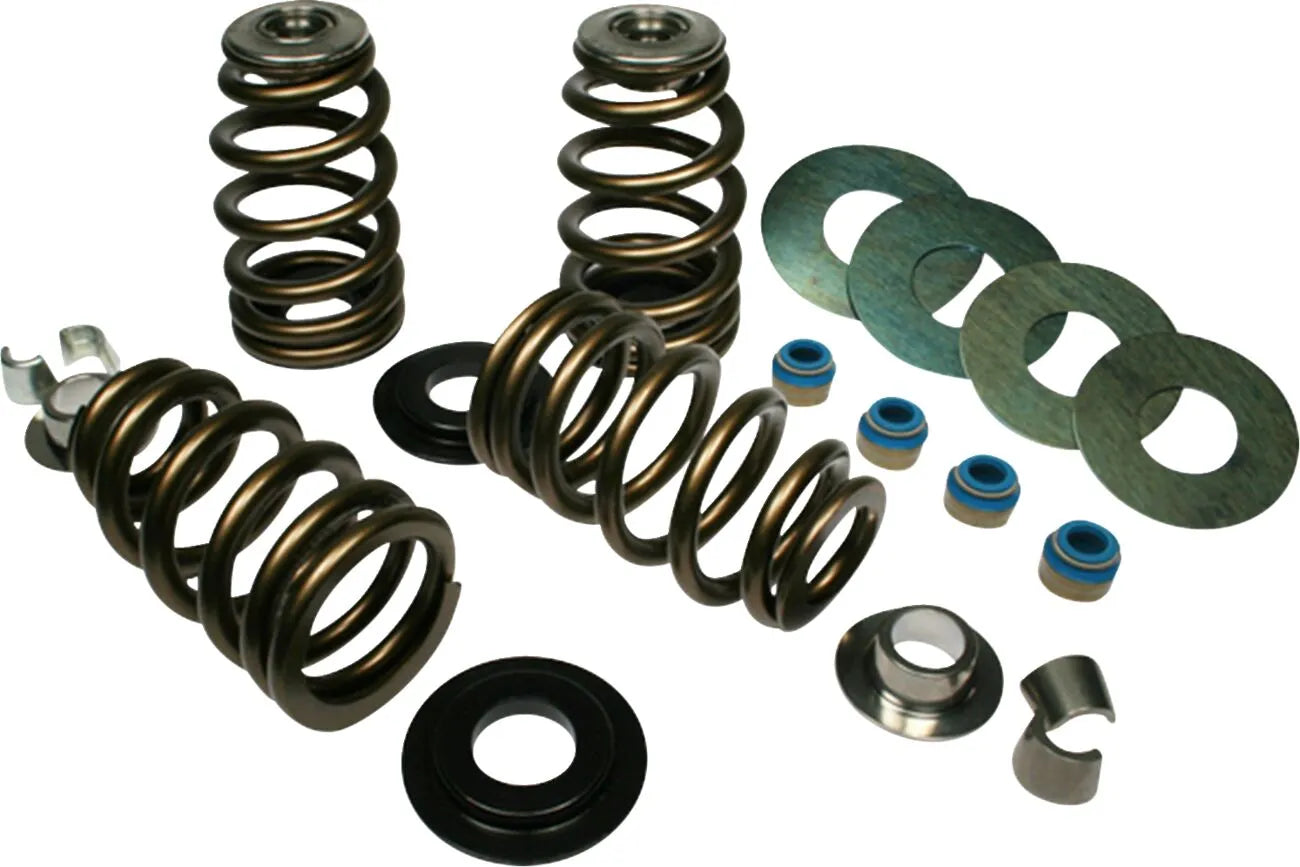

Feuling High Load Beehive Valve Spring Kit - .750" Lift - Steel - 1200

Upgrade your engine's valve train with the Feuling Parts High Load Beehive® Valve Springs. These springs are engineered to withstand the rigors of high-performance engines, ensuring reliable valve control and enhanced engine performance. Experience the benefits of reduced valve weight, quicker revving, and smoother engine operation.

Description

The Feuling High Load Beehive® Valve Springs are designed for demanding performance engines with high-lift, steep-ramped camshafts, allowing up to 0.750" lift cams. These springs are manufactured from premium stress-relieved conical ovate wire, treated with a nitrided surface heat treatment, and enhanced with shot-peened surface and Nano Peen™ polish. This meticulous construction provides an extremely high level of fatigue life, proven through dyno and track testing. The kit is a direct replacement, requiring no machining or rocker box clearance for most applications. However, larger camshafts may require valve guide machining for seal-to-retainer clearance. This kit ensures optimal valve train performance and reliability for your high-performance engine, maximizing power and responsiveness.

Features & highlights

• Crafted from premium stress-relieved conical ovate wire for superior durability.
• Nitrided surface heat treatment, shot-peened surface enhancements, and Nano Peen™ polish maximize fatigue life.
• Lightweight 10° Titanium retainers (Ti-17 alloy) reduce valve weight for quicker revving and smoother motion.
• Designed for high-performance engines with high-lift, steep-ramped camshafts, allowing up to 0.750" lift cams.
• Direct replacement, no machining or rocker box clearance required for many applications.
• Dyno proven and track tested for reliability and performance.
• Made in the USA.

Technical specifications

• Brand: Feuling Parts
• Product Name: Spring Kit
• Type: Valve Spring Kit
• Application: Exhaust, Intake
• Spring Lift: 0.750"
• Collar Material: Titanium
• Material: Steel
• Seat Load at 1.935" Installed Height: 170 lb (0.720" lift)
• Seat Load at 1.900" Installed Height: 185 lb (0.685" lift)
• Seat Load at 1.845" Installed Height: 200 lb (0.630" lift)
• Seat Load at 1.819" Installed Height: 208 lb (0.604" lift)
• Seat Load at 1.800" Installed Height: 215 lb (0.585" lift)
• Seat Load at 1.789" Installed Height: 217 lb (0.574" lift)
• Open Load at 1.215" Open Height: 415 lb
• Coil Bind: 1.125"

Important to know

• Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.
• Up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL.
• Up to 0.700" lift for '05-'17 Twin Cam.
• Larger camshafts may require valve guide machining for seal-to-retainer clearance.
