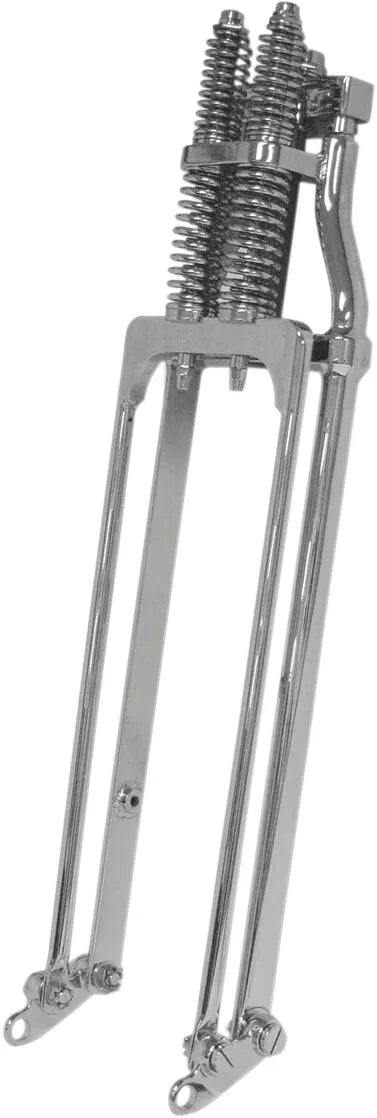

Drag Specialties Custom Springer Springer Forks - 37" - J300016

Upgrade your motorcycle with the Drag Specialties +6" Custom Springer Forks. This fully assembled springer fork provides a classic look and improved handling, offering an economical alternative to shock-dampened springers.

Description

The Drag Specialties +6" Custom Springer Forks offer a blend of classic aesthetics and reliable performance. Measuring 37" from the top bearing to the axle, these chrome springers provide a +6" length for a unique stance. The 1" OD steering stem is designed for Timken® type bearings, ensuring smooth and dependable operation. Both rear legs are threaded to accommodate right or left brakes, offering versatility in brake setup. The included 3/4" OD axle kit features a brake mount pivot with thrust washer and hub spacers, though custom spacers may be required depending on the wheel used. With riser mounts on 4-3/4" centers and threaded 1/2"-20, these springer forks are ready for your custom handlebar setup. These forks measure 9-1/4" between the rockers.

Features & highlights

• Economical alternative to traditional shock-dampened springers.
• Fully assembled with an in-line top bracket, eliminating built-in rake.
• Provides a +6" length, measuring 37" from top bearing to axle for a custom look.
• 1" OD steering stem designed for Timken® type bearings ensures smooth operation.
• Versatile brake setup with both rear legs threaded for right or left brakes.
• Includes a 3/4" OD axle kit with brake mount pivot, thrust washer, and hub spacers.
• Riser mounts are on 4-3/4" centers and threaded 1/2"-20 for easy handlebar installation.

Technical specifications

• Brand: Drag Specialties
• Color/Finish: Chrome
• Steering Stem OD: 1"
• Axle Diameter: 3/4"
• Length: +6" (37" from top bearing to axle)
• Riser Mount Centers: 4-3/4"
• Riser Mount Thread: 1/2"-20
• Distance Between Rockers: 9-1/4"

Important to know

• Requires wheel compatible with 3/4" OD axle. Custom spacers may be required depending on the wheel used.
• Does not accept spotlight bars.
• No fender mounts included.
