Dakota Digital Mvx Series Analog Gauge System

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series analog gauge system. This all-in-one gauge combines classic aesthetics with modern functionality, providing you with essential data at a glance. Get ready to enhance your riding experience with unparalleled style and precision.

Description

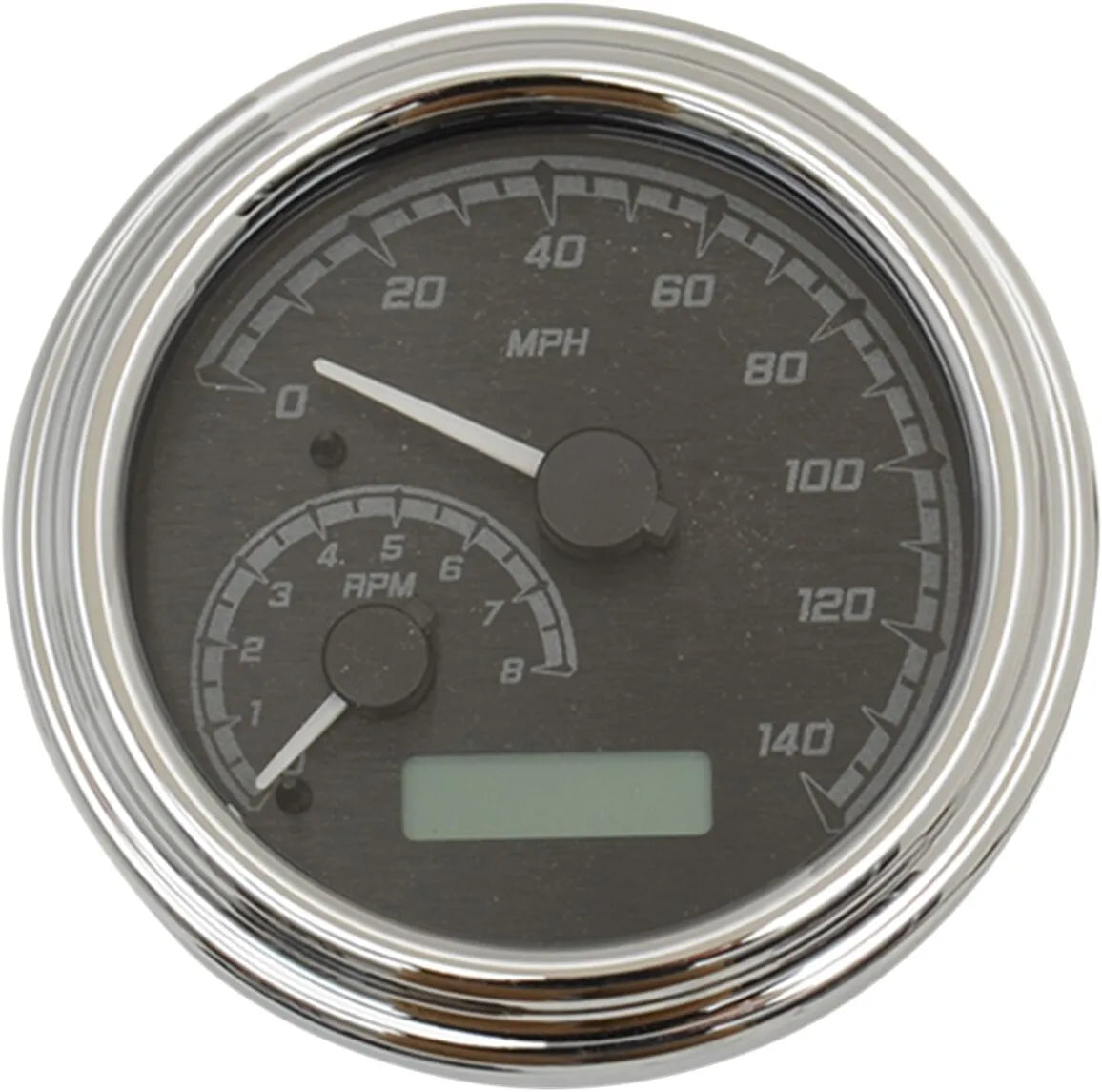

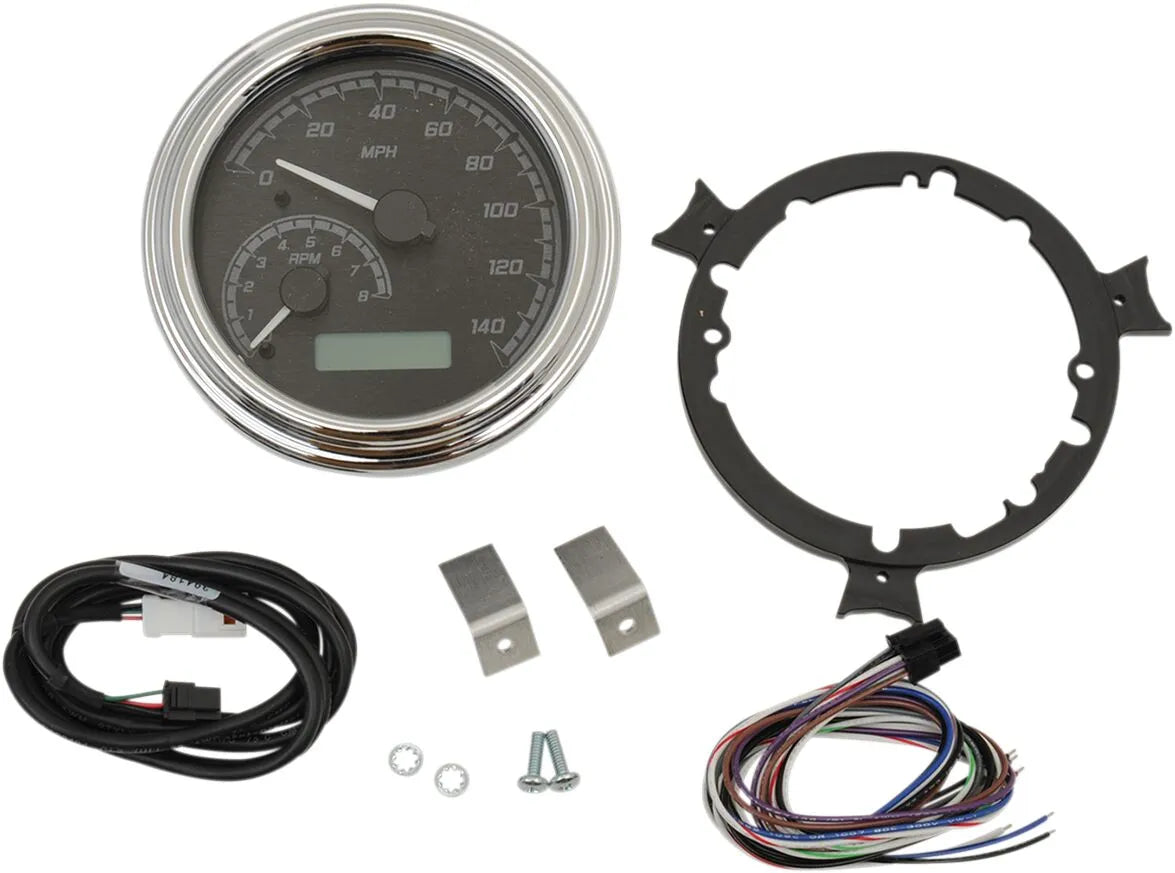

The Dakota Digital MVX Series analog speedometer gauge system provides a comprehensive instrument solution for your motorcycle. It features a 140 mph speedometer, an 8,000 rpm tachometer with adjustable shift point, an odometer, and dual resettable trip meters. The integrated indicator lights cover turn signals, high beam, neutral, and low oil pressure. This gauge system streamlines your dashboard while offering advanced features such as resettable miles to service with a warning, an hour meter, a clock function (12-hour format), and a voltage readout with a low-voltage alert. It also boasts a seven-speed gear position indicator, compatible with 3- to 7-speed transmissions, a security system indicator, and automatic turn signal canceling compatibility. The MVX series can perform performance calculations such as 0-60 time, top speed, peak RPM recall, and 1/4 mile time and speed. The case diameter measures 4-1/4" with a bezel diameter of 4-5/8".

Features & highlights

• All-in-one analog gauge system with 140 mph speedometer and 8,000 rpm tachometer.
• Configurable display with user-selectable colors for optimal visibility.
• Performs performance calculations: 0-60 time, top speed, 1/4 mile time, and peak RPM.
• Includes essential indicators: turn signals, high beam, neutral, low oil pressure, and security system.
• Provides resettable service mileage countdown and hour meter for proactive maintenance.
• Seven-speed gear position indicator compatible with 3- to 7-speed transmissions.
• Wiring installation is cut/splice, ensuring a secure and adaptable fit.

Technical specifications

• Brand: Dakota Digital
• Type: Analog Speedometer
• Face Color: Black, Gray
• Housing Color: Chrome
• Speedometer Calibration: 0-225 kph (0-140 mph)
• Tachometer Calibration: 0-8,000 rpm
• Outside Diameter: 5" (12.7 cm)
• Units: Kit

Important to know

The cylinder head temperature sensor requires a factory sender unit. The oil pressure sending unit is sold separately (part #s 2212-0513 or DS-250019). Wiring installation requires cutting and splicing; this is not a direct plug-in gauge.
