Brembo Rcs Brake Master Cylinder For Sportbikes

The Brembo RCS brake master cylinder series is engineered for riders who demand the pinnacle of braking performance. These master cylinders are meticulously crafted to meet the exacting tolerances required for superior braking power, exceptional feel, and consistent performance, especially during competitive riding. With Brembo components, you're entering a world of unparalleled quality, attention to detail, and extreme performance.

Description

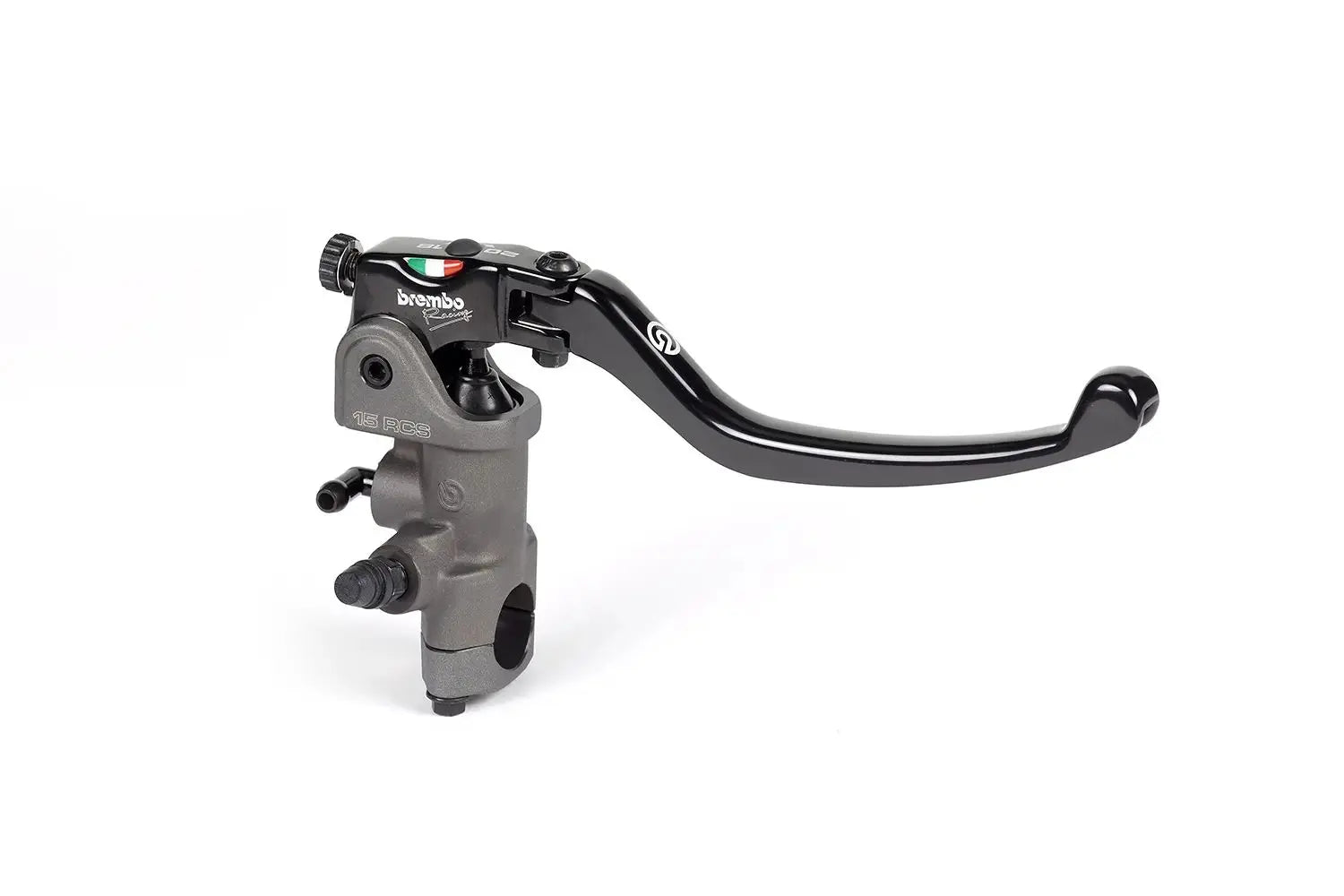

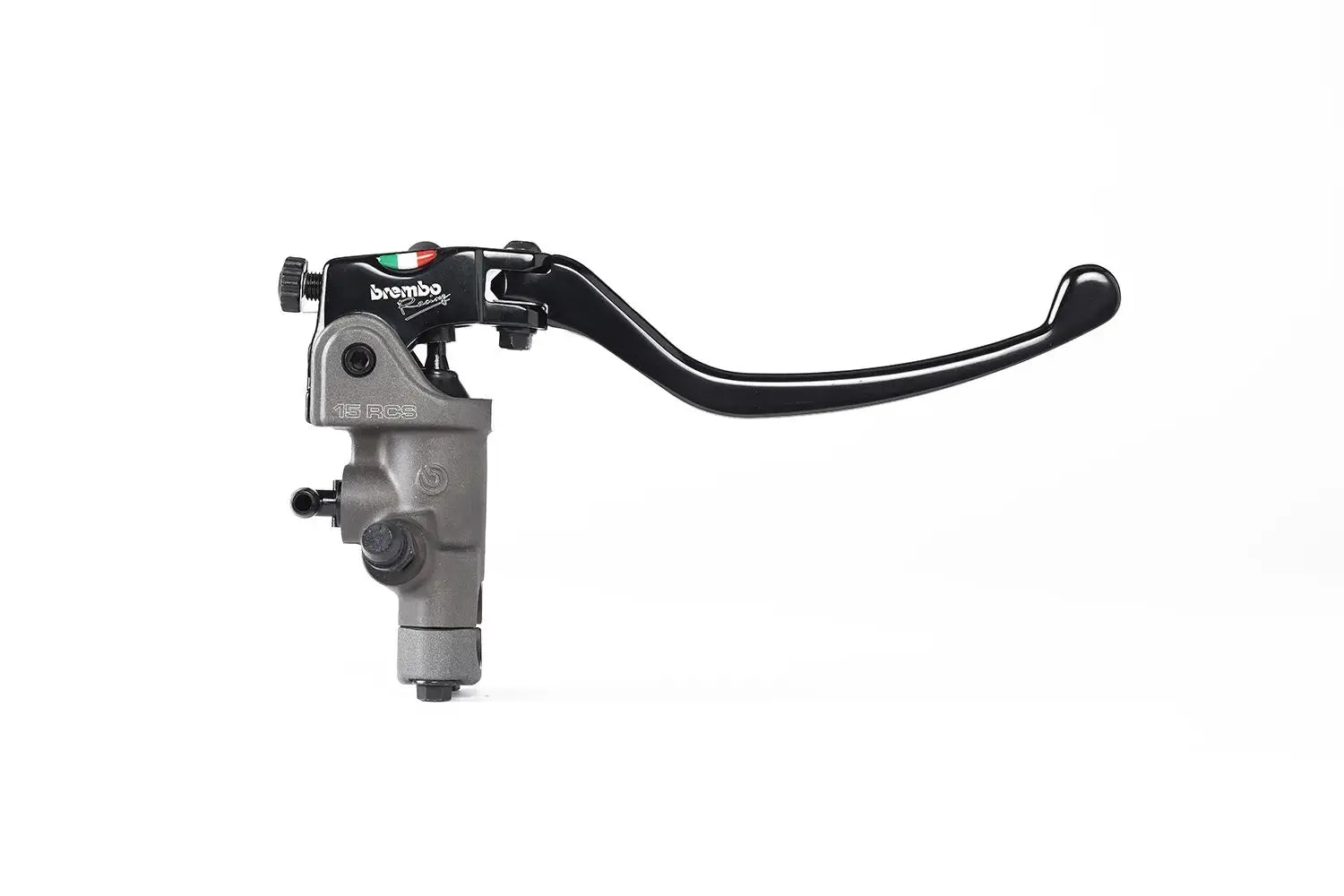

This Brembo RCS brake master cylinder features a folding, standard-length lever designed with an anti-drag inlet hole at the end, allowing air to pass freely at high speeds, optimizing lever feel and response. This feature makes it a popular choice among track and race enthusiasts. The master cylinder body is constructed from billet aluminum and anodized for superior durability and a sleek finish. The RCS (Ratio Click System) allows you to adjust the brake lever ratio to fine-tune the braking feel to your preferences and riding style. Available with piston diameters of 15 mm, 16 mm, 17 mm, 18 mm and 19 mm.

Features & highlights

• Achieve extraordinary braking performance and feel, crucial for competitive riding.
• Folding, standard-length lever with anti-drag inlet enhances lever feel at high speeds.
• Constructed from billet aluminum for superior strength and durability.
• Anodized finish provides excellent surface protection and a premium look.
• Features a 7/8" (22 mm) bar size, standard for most sportbikes.
• Includes a brake switch for street applications.
• Double hole banjo bolt included for secure and reliable brake line connection.

Technical specifications

• Brand: Brembo
• Material: Billet Aluminum
• Finish: Anodized
• Color: Black
• Mounting Position: Front
• Actuation: Mechanical
• Clamping Diameter: 7/8" (22 mm)
• Brake Master Cylinder Bore Diameter: 15 mm (19/32")
• Lever Type: Folding, Standard Length
• Disc Application: Double

Important to know

To complete installation, Brembo recommends using the Brembo 45 ml Brake Reservoir Mounting Kit (Part# RE-110A26385), which includes the necessary hardware and tubing. DOT 4 brake fluid is required; it is recommended to replace all fluid in the system when installing the master cylinder. Do NOT use DOT 5.1 brake fluid. If using the stock reservoir, a length of 6 mm Tygon 2375 tubing and two 3/8" spring clamps will be necessary.
