Biltwell Tracker High Bar - 1" - 4-1/2" Rise - Chrome - 6009-1057
Produktinfo
- Artikelnummer
- 06015652
- Tillverkarnummer
- 6009-1057
- Placering
- Styrdiameter
- 1" (25,4 mm)
- Höjd (rise)
- 4-1/2" (11,5 cm)
- Bredd
- 30" (76 cm)
- Pullback
- 2-3/4" (69,9 mm)
- Egenskaper
- För elektronisk gas (TBW) · Förborrad för invändig dragning
Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for superior performance and aesthetics. This handlebar offers seamless compatibility with both cable and Throttle-By-Wire (TBW) systems, providing versatility for a wide range of motorcycle builds. Crafted with precision and durability in mind, it's the perfect blend of form and function.
Description

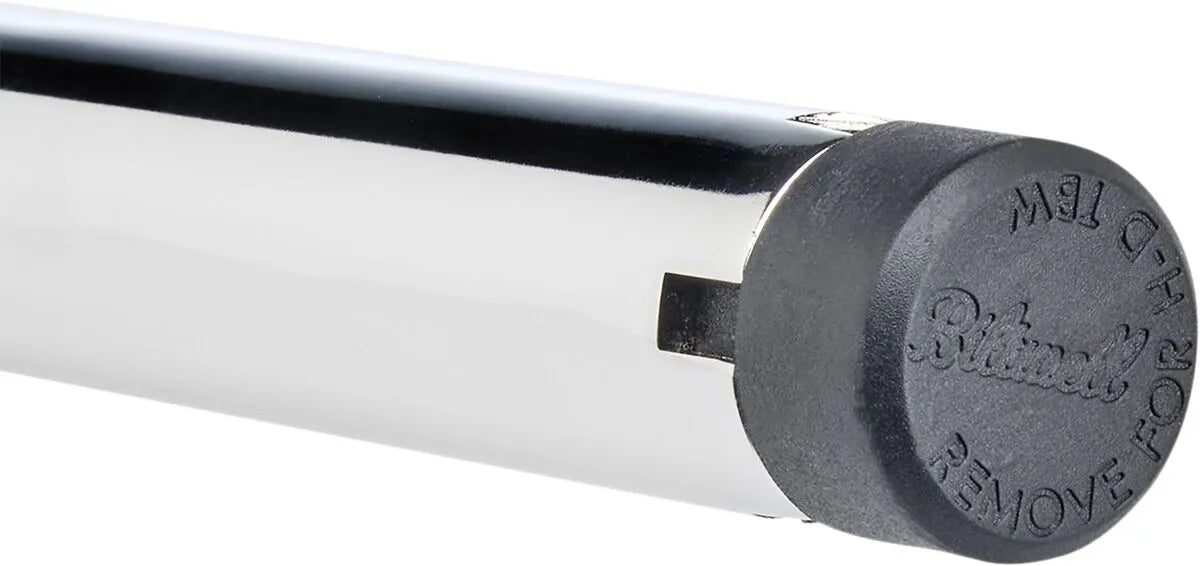

The Biltwell 1" Handlebar features a reinforced nylon plug that allows for easy adaptation between cable throttles and TBW systems. Constructed from thick-walled 0.120" 4130 chromoly steel, this handlebar offers exceptional strength and longevity. The precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics. Milled slots on the bar ends and clamping area facilitate clean internal wire routing, giving your motorcycle a professional, uncluttered look. The notched and internally tapered right-side bar end is specifically designed to accommodate Harley-Davidson's Throttle-By-Wire control module. Precision mitered and TIG-welded tube joints further enhance the handlebar's structural integrity and visual appeal. Finished in a brilliant chrome, these handlebars are 1" in diameter and have a 4-1/2" rise, a 2-3/4" pullback, and a 30" width. The clamping and controls diameter are both 1".
Features & highlights
- Adapts seamlessly between cable and Throttle-By-Wire (TBW) systems for maximum compatibility.
- Constructed from robust 0.120" (3 mm) thick-walled 4130 chromoly steel for superior strength.
- Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.
- Milled slots allow for clean and easy internal wire routing.
- Notched and tapered bar end designed for Harley-Davidson Throttle-By-Wire control module.
- Features precision mitered and TIG-welded tube joints for enhanced durability and aesthetics.
Technical specifications
- Brand: Biltwell
- Part Number: 6009-1057
- Base Color: Silver
- Finish: Chrome
- Center Width: 5" (12.5 cm)
- Clamping Diameter: 1" (25.4 mm)
- Controls Diameter: 1" (25.4 mm)
- End Rise: 4" (10 cm)
- Handlebar Diameter: 1" (25.4 mm)
- Height/Rise: 4-1/2" (11.5 cm)
- Material: Chromoly
- Pullback/Sweep: 2-3/4" (69.9 mm)
- Type/Bend: Tracker, High
- Width: 30" (76 cm)
- Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire
Important to know
This handlebar is sold individually (each).
- Brand
- BILTWELL
- Vendor part number
- 6009-1057
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 12,5 cm (5")
- Rise
- 11,5 cm (4-1/2")
- Handlebar diameter
- 25,4 mm (1")
- End rise
- 10 cm (4")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 76 cm (30")
- Height
- 11,5 cm (4-1/2")
- Finish
- Chrome
- Material
- Chromoly
- Features
- Cable Throttle Application, Slotted, Notched for Throttle-By-Wire
- Base color
- Silver
- Units
- Each
