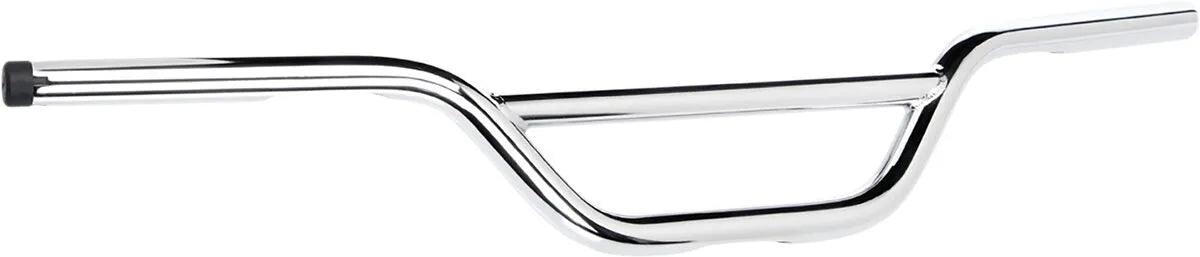

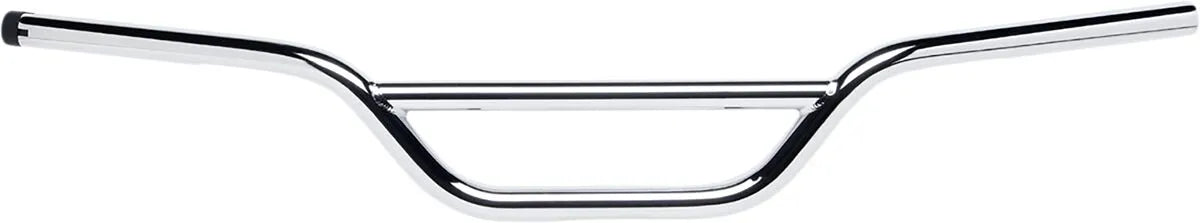

Biltwell Moto Handlebar - 1" - 4-1/4" Rise - Chrome - 6016-1057

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for both style and performance. This handlebar combines classic aesthetics with modern functionality, making it an ideal choice for riders looking to enhance their bike's control and appearance.

Description

Crafted from seamless, thick-walled 0.120" (3 mm) 4130 chromoly, the Biltwell handlebar offers exceptional durability and strength. Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics, reducing rider fatigue. The handlebar features milled slots on the bar ends and clamping area for clean internal wire routing, providing a tidy and professional look. A notched and internally tapered right-side bar end is specifically designed to accept Harley-Davidson Throttle-By-Wire (TBW) control modules. Additionally, an injection-molded, reinforced nylon plug in the bar end on the throttle side allows compatibility with select stock and aftermarket single- and dual-cable throttles. Simply remove the plug for TBW compatibility. The precision mitered and TIG welded tube joints ensure a robust and reliable construction. Finished in chrome, this 1" handlebar delivers a sleek, custom look and superior corrosion resistance. Easy to install, this Biltwell handlebar will dramatically improve the aesthetics and control of your motorcycle.

Features & highlights

• Constructed from robust 0.120" (3 mm) thick-walled 4130 chromoly steel for maximum durability.
• Precision mandrel-bent for accurate alignment and enhanced ergonomics.
• Features milled slots for clean and internal wire routing.
• Notched and tapered right-side accommodates Harley-Davidson Throttle-By-Wire (TBW).

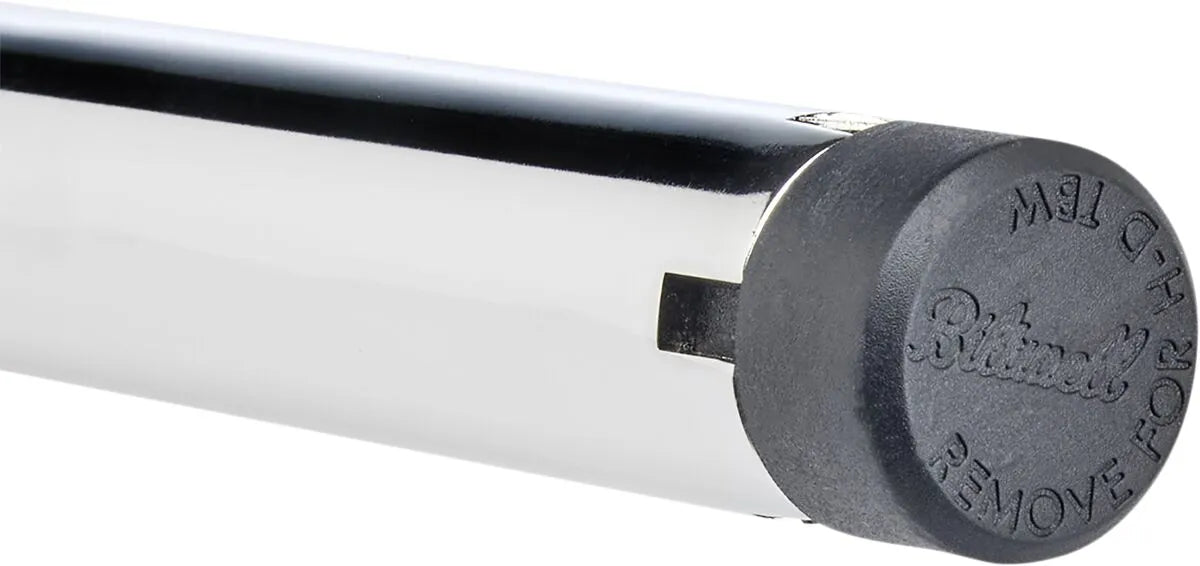

• Includes a removable nylon plug for compatibility with cable throttles.
• Finished with a brilliant chrome plating for a custom look.
• Precision mitered and TIG welded tube joints for enhanced strength.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Moto
• Material: 4130 Chromoly
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Finish: Chrome
• Base Color: Silver
• Width: 31" (78.5 cm)
• Height: 4-1/2" (11.5 cm)
• Rise: 4-1/4" (11 cm)
• End Rise: 4-1/4" (11 cm)
• Center Width: 4-3/4" (12 cm)
• Pullback/Sweep: 2-3/4" (69.9 mm)
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

Ensure compatibility with your motorcycle before installation. Professional installation is recommended.
