Feuling Parts Race Series Chain Drive Cam Kit

Upgrade your engine's performance with the Feuling Parts Race Series Chain Drive Camshaft Kit. This kit is designed to deliver increased engine RPM and optimized valve train performance, making it ideal for enthusiasts and professionals seeking maximum power and reliability. Manufactured in the USA, this kit ensures top-tier quality and precision engineering.

Description

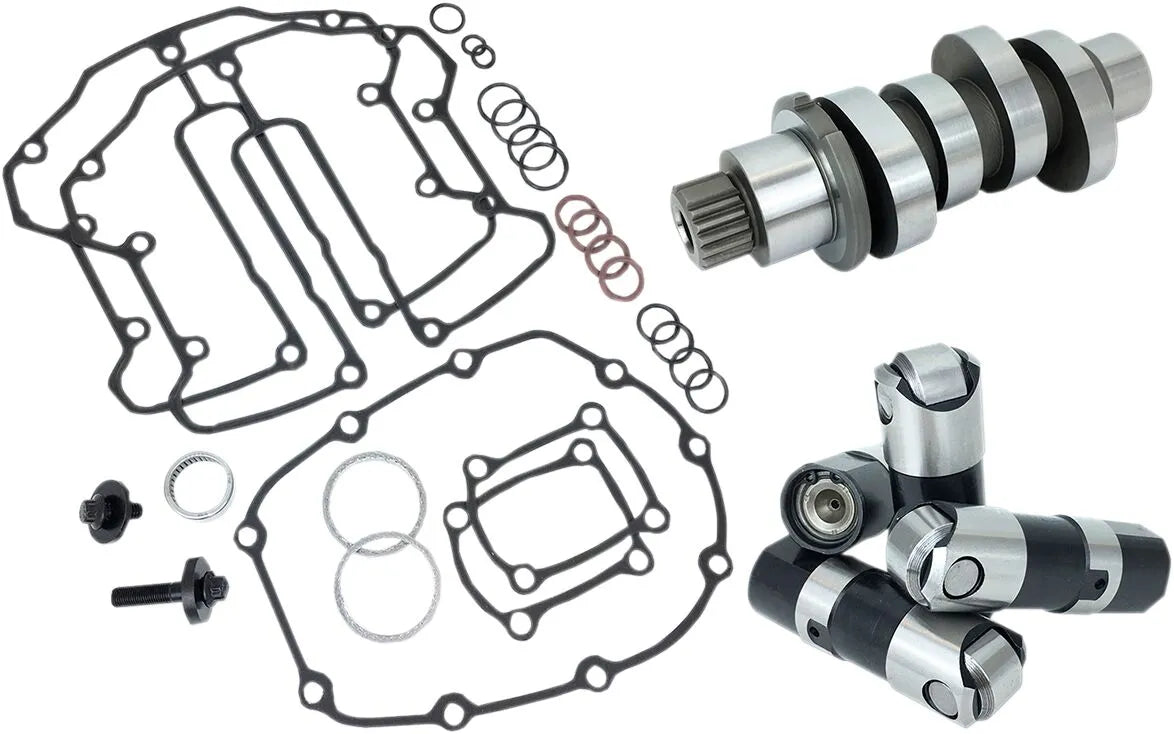

The Feuling Parts Race Series Chain Drive Camshaft Kit features a Reaper® camshaft and Racer Series full travel hydraulic lifters with 0.200" total travel. These lifters have a slower bleed-down rate, allowing them to handle steep ramped cams and heavy valve springs, effectively increasing engine RPM before valve float. The included gasket/o-ring kit accommodates the installation of Feuling heavy-duty HP+ 0.0165" wall one-piece pushrods or factory one-piece pushrods. To further enhance reliability, the kit includes ARP® cam/crank fasteners and a cam installation kit. Feuling recommends using one-piece pushrods over quick-install adjustable pushrods due to the design of 4-valve engines, which helps maintain maximum cam/valve lift and reduce valvetrain harmonics.

Features & highlights

• Maximize engine RPM and prevent valve float with Race Series lifters.
• Includes Reaper® camshaft and Racer Series hydraulic lifters for enhanced performance.
• Gasket/o-ring kit supports installation of Feuling HP+ or factory one-piece pushrods.
• ARP® cam/crank fasteners provide superior durability and reliability.
• Designed to reduce valvetrain harmonics and maintain optimal cam/valve lift.
• Made in the USA, ensuring premium quality and craftsmanship.
• Enhance cylinder head stability with recommended Feuling fastener kit (sold separately).

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft Kit
• Type: Chain Drive
• Grind: 508 Series
• Intake Open: 20.5°
• Intake Close: 37°
• Intake Duration: 237°
• Intake Lift: 0.508"
• Intake Lift at TDC: 0.180"
• Intake Lobe Centerline: 98.5°
• Exhaust Open: 44°
• Exhaust Close: 17.5°
• Exhaust Duration: 241.5°
• Exhaust Lift: 0.511"
• Exhaust Lift at TDC: 0.146"
• Exhaust Lobe Centerline: 103.25°

Important to know

This kit is not compatible with '23-'24 models featuring 121" VVT motors. Feuling highly recommends using one-piece pushrods. Feuling fastener kit is recommended but not included to prevent cylinder head cracking.
